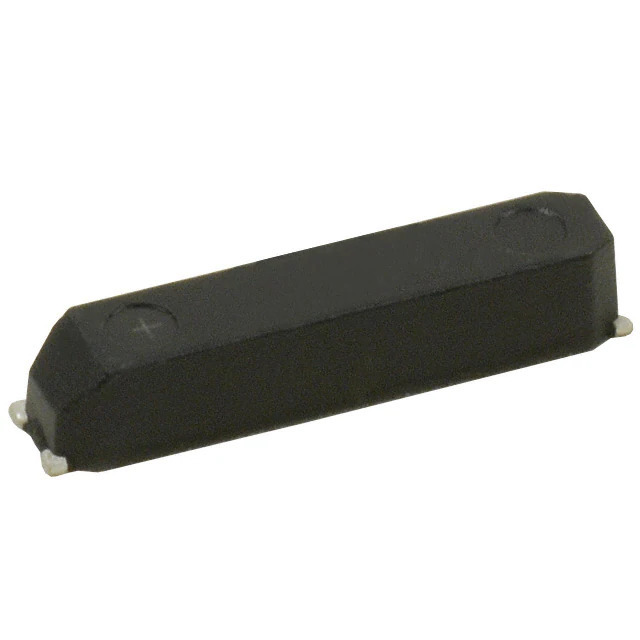

SSPT7F-12.5PF5PPM Seiko Instruments
Same model may have multiple batches, images only for reference.

SSPT7F-12.5PF5PPM

Part No SSPT7F-12.5PF5PPM
Manufacturer Seiko Instruments
Catalog Oscillators
Description CRYSTAL 32.7680KHZ 12.5PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Seiko Instruments
Series SSP-T
Package Tape & Reel
Product Status Obsolete
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Stability -
Frequency Tolerance ±5ppm
Load Capacitance 12.5pF
ESR (Equivalent Series Resistance) 65 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, Flat Lead, 3 Leads
Size / Dimension 0.264" L x 0.059" W (6.70mm x 1.50mm)
Height - Seated (Max) 0.055" (1.40mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 1366380-SSPT7F-12.5PF5PPM
Ultra Librarian 3D Model Ultra Librarian SSPT7F-12.5PF5PPM CAD Model

Description

The 1366380-SSPT7F-12.5PF5PPM is a kHz crystal (tuning fork) designed for use in crystals, oscillators, and resonators. Seiko Instruments

  • Frequency: 32.768 kHz
  • Frequency Tolerance: ±5ppm
  • Temperature Range: -40°C to 85°C
  • ESR: 65 kOhms
  • Package: 4-SMD, Flat Lead, 3 Leads
  • Mounting Type: Surface Mount
  • Status: Obsolete
  • REACH: Unaffected
