Same model may have multiple batches, images only for reference.

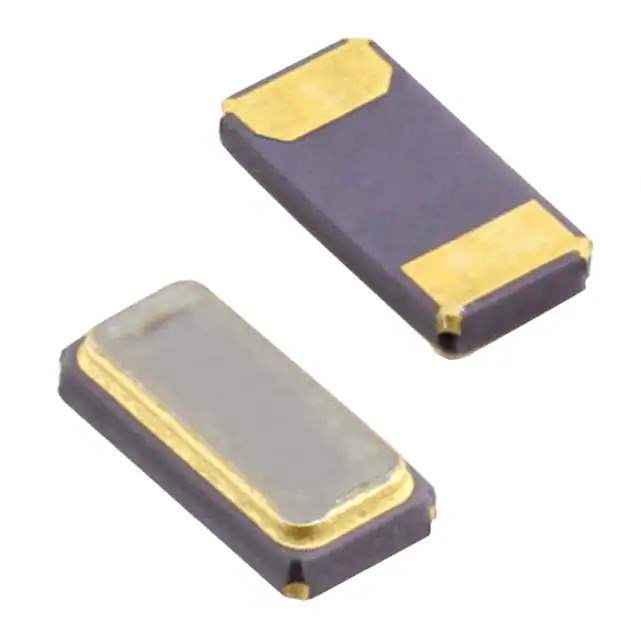

SC32S-7PF20PPM Real Image
Same model may have multiple batches, images only for reference.

SC32S-7PF20PPM

Part No SC32S-7PF20PPM
Manufacturer Seiko Instruments
Catalog Oscillators
Description CRYSTAL 32.7680KHZ 7PF SMD
Datasheet
SC32S-7PF20PPM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Seiko Instruments
Series SC32S
Package Tape & Reel
Product Status Active
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 7pF
ESR (Equivalent Series Resistance) 70 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) 0.033" (0.85mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 850486-SC32S-7PF20PPM
Ultra Librarian 3D Model Ultra Librarian SC32S-7PF20PPM CAD Model

Description

The 850486-SC32S-7PF20PPM is a kHz crystal from the SC32S series.

  • Series: SC32S
  • Mounting: Surface Mount
  • Packaging: Tape and Reel
  • Pieces: 3,000
  • Dimensions: 0.126" L x 0.059" W (3.20mm x 1.50mm)
  • Seated Height: 0.033" (0.85mm)
  • Status: Active
  • Manufacturer: Seiko Instruments
  • Frequency: 32.768 kHz
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 7pF
  • Mode: Fundamental
