101020034

Part No 101020034
Manufacturer Seeed Technology Co., Ltd
Catalog Evaluation Boards - Expansion Boards

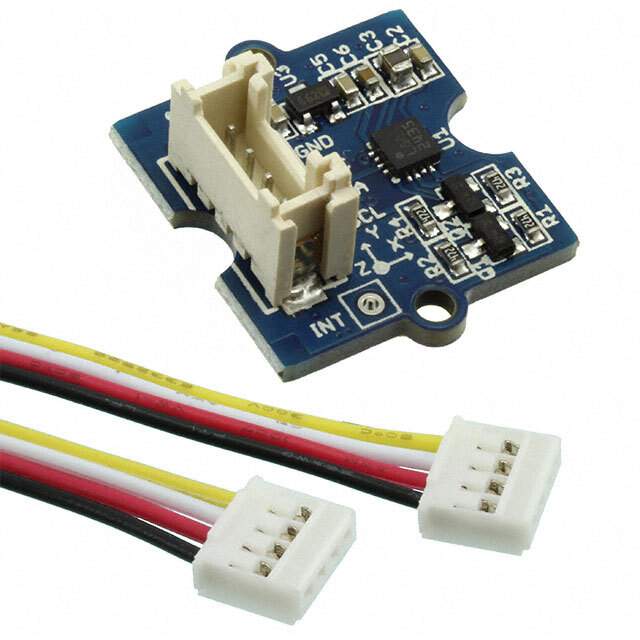

Description HMC5883L Magnetoresistive Sensor Grove Board / GROVE 3-AXIS DIGITAL COMPASS
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Seeed Technology Co., Ltd
Platform Grove
Type Sensor
Function Compass
Utilized IC / Part HMC118X, HMC5883L, MIC5205
Contents Board, Cable
Win Source Part Number 788657-101020034
Popularity Medium
Supply and Demand Status Balance
Family Name 101020034
Introduction Date January 01, 2000
ECCN 7A994
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian 101020034 CAD Model

Description

The Grove Compass Sensor Board is a high-precision compass module that can measure the magnetic field strength and direction. This sensor is based on the HMC118X and HMC5883L ICs, which can detect the magnetic field in three dimensions.

  • Magnetic Field Detection: 3 Dimensions
  • Compatibility: Grove platform
  • Voltage Regulator: MIC5205
