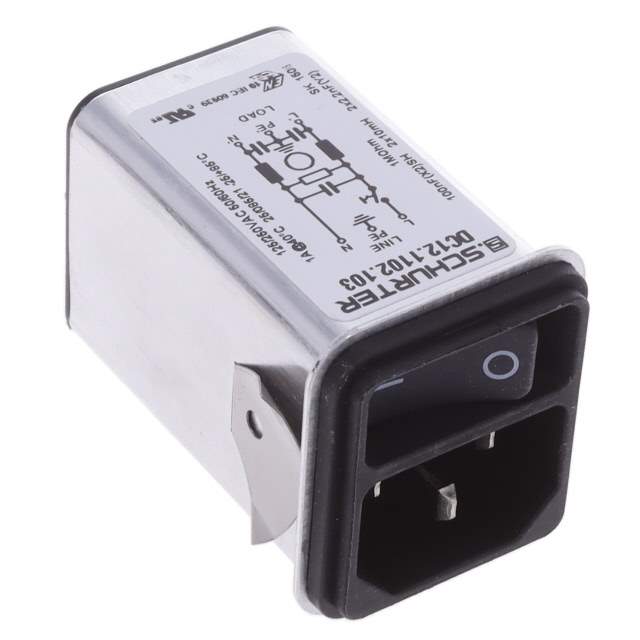

DC12.1102.103 Real Image
Same model may have multiple batches, images only for reference.

DC12.1102.103

Part No DC12.1102.103
Manufacturer Schurter Inc.
Catalog Power Entry Connectors - Inlets, Outlets, Modules
Description PWR ENT MOD RCPT IEC320-C14 PNL / Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
Datasheet
DC12.1102.103 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Power Entry Connectors - Inlets, Outlets, Modules
Mfr SCHURTER Inc.
Series DC12
Package Bulk
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades - Module
Current - IEC 1A
Voltage - IEC 250VAC
Current - UL 1A
Voltage - UL 125VAC
Filter Type Filtered (EMI, RFI) - Commercial
Accomodates a Fuse No
Number of Positions 3
Mounting Type Panel Mount, Snap-In
Termination Quick Connect - 0.250" (6.3mm)
Switch Features Switch On-Off
Features Shielded, V-Lock Notch
Panel Cutout Dimensions Rectangular - 29.40mm x 33.10mm
Panel Thickness 0.039" ~ 0.118" (1.00mm ~ 3.00mm)
Material Flammability Rating UL94 V-0
Ingress Protection IP40
Approval Agency CQC, cULus, ENEC
Base Product Number DC12.1102
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4030
Other Names 486-5870,DC12.1102.103-ND
Standard Package 10
Win Source Part Number 1055254-DC12.1102.103
Ultra Librarian 3D Model Ultra Librarian DC12.1102.103 CAD Model

Description

The DC12 series power entry connector is a receptacle with male blades - module connector type that has 3 positions.

  • Type: Filtered (EMI, RFI) - Commercial
  • Switch: On-Off
  • Panel Cutout Dimension: Rectangular - 29.40mm x 33.10mm
  • Current: 1A
  • Voltage Rating: 250VAC (IEC) and 125VAC (UL)
  • Material: UL94 V-0 rated material
  • Ingress Protection: IP40
  • Termination: Quick Connect 0.250" (6.3mm)
  • Mounting: Panel Mount, Snap-In
  • Series: DC12.1102.103
  • Packaging: Bulk
  • Alternative Parts: 1-480305-0, 1-480701-0, 206036-2, 50-57-9403, 43640-0301, and 39-01-4032
  • Approvals: CQC, cULus, and ENEC
  • ECCN: EAR99
