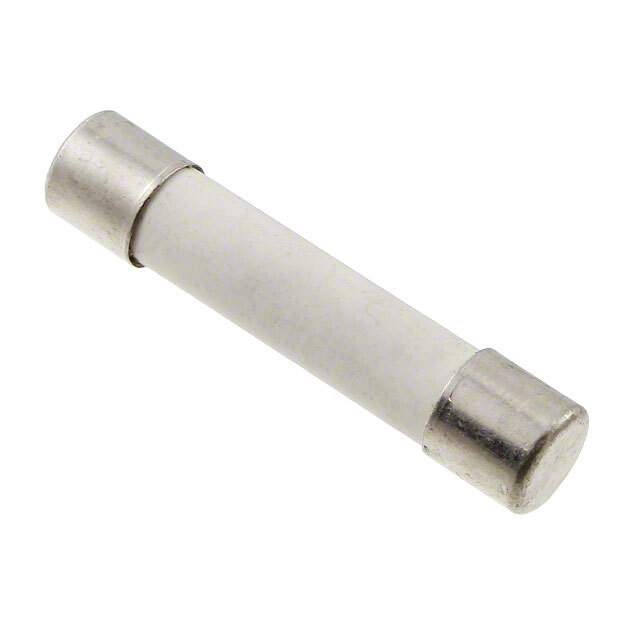

8020.5077.G Real Image
Same model may have multiple batches, images only for reference.

8020.5077.G

Part No 8020.5077.G
Manufacturer Schurter Inc.
Catalog Fuses
Description SHF 6.3X32 FUSE 8A F / 8 A 500 V AC 400 V DC Fuse Cartridge, Ceramic Holder 3AB, 3AG, 1/4" x 1-1/4"
Datasheet
8020.5077.G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr SCHURTER Inc.
Series SHF 6.3x32
Package Bulk
Mounting Type Holder
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 8 A
Voltage Rating - AC 500 V
Voltage Rating - DC 400 V
Response Time Fast Blow
Package / Case 3AB, 3AG, 1/4" x 1-1/4"
Breaking Capacity @ Rated Voltage 1.5kA
Melting I2t 120
Approval Agency cURus
Temperature Range - Operating -40°C ~ 85°C
Dimension 0.250" Dia x 1.252" L (6.35mm x 31.80mm)
Base Product Number 8020.5077
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Other Names 486-4169
Standard Package 1,000
Win Source Part Number 1200838-8020.5077.G
Ultra Librarian 3D Model Ultra Librarian 8020.5077.G CAD Model

Description

The 1200838-8020.5077.G is a ceramic cartridge fuse from Schurter Inc..

  • Category: Circuit protection
  • Packaging: Bulk
  • Voltage Rating (AC): 500V
  • Voltage Rating (DC): 400V
  • Response Time: Fast blow
  • Breaking Capacity: 1.5kA @ rated voltage
  • Melting I2t: 120
  • Standard Package: 1,000
  • Mounting: Holder
  • Package/Case: 3AB, 3AG, 1/4 inches x 1-1/4 inches
  • Operating Temperature Range: -40°C ~ 85°C
