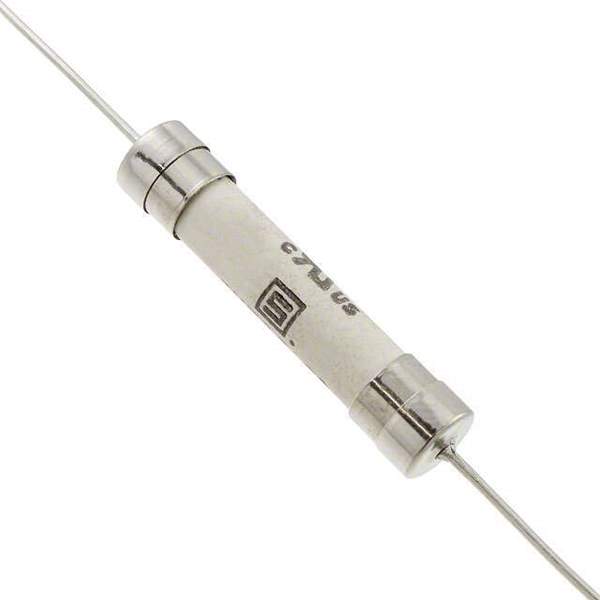

Part No 8020.5068.PT
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE CERAMIC 1A 500VAC 3AB 3AG / 1 A 500 V AC DC Fuse Cartridge, Ceramic Through Hole 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr SCHURTER Inc.
Series SHF 6.3x32
Package Bulk
Mounting Type Through Hole
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 1 A
Voltage Rating - AC 500 V
Response Time Fast Blow
Package / Case 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Breaking Capacity @ Rated Voltage 1.5kA
Melting I2t 1.5
Approval Agency cURus
Temperature Range - Operating -40°C ~ 85°C
Dimension 0.270" Dia x 1.291" L (6.85mm x 32.80mm)
Base Product Number 8020.5068
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Other Names 486-3023
Standard Package 100
Win Source Part Number 1030955-8020.5068.PT
Ultra Librarian 3D Model Ultra Librarian 8020.5068.PT CAD Model

Description

The Schurter SHF 6.3x32 is a ceramic cartridge fuse that has a fast-blow response time and a voltage rating of 500VAC.

  • Current Rating: 1A
  • Breaking Capacity: 1.5kA @ rated voltage
  • Dimension: 0.270 inches diameter and 1.291 inches length (6.85mm x 32.80mm)
  • Mounting: Through-hole technology
