7022.07

Part No 7022.07
Manufacturer Schurter Inc.
Catalog Fuses

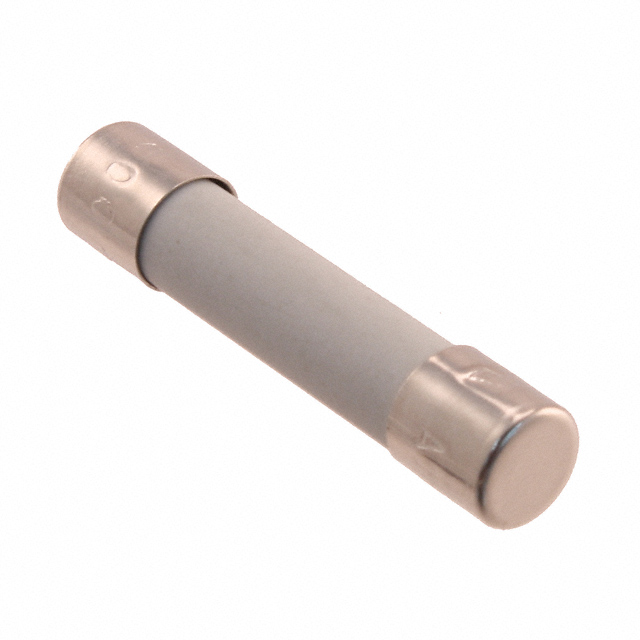

Description FUSE CERAMIC 10A 500VAC 3AB 3AG
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Schurter Inc.
Packaging Bulk
Status Active
Fuse Type Cartridge, Ceramic
Current Rating 10A
Voltage Rating - AC 500V
Response Time Fast
Mounting Clip / Holder
Breaking Capacity @ Rated Voltage 10kA
Nominal Melting - I2t 30
Approvals UR
Temperature Range - Operating -40°C to 85°C
Dimension 0.250" Dia x 1.252" L (6.35mm x 31.80mm)
Win Source Part Number 1003771-7022.07
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 7022.07 CAD Model

Description

The 7022.07 is a ceramic cartridge fuse manufactured by Schurter Inc. Schurter Inc.

  • Current Rating: 10A
  • Breaking Capacity: 10kA @ Rated Voltage
  • Approvals: UR
  • Temperature Range: -40°C to 85°C
  • Status: Sufficient Supply and Demand
