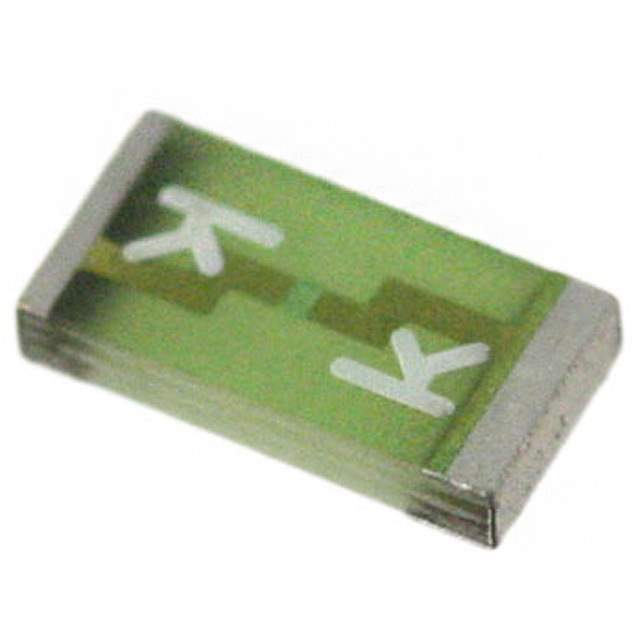

3413.0223.26 Real Image
Same model may have multiple batches, images only for reference.

3413.0223.26

Part No 3413.0223.26
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BRD MNT 5A 32VAC 63VDC 1206 / 5 A 32 V AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Datasheet
3413.0223.26 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr SCHURTER Inc.
Series USI 1206
Package Tape & Reel (TR)
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 5 A
Voltage Rating - AC 32 V
Voltage Rating - DC 63 V
Response Time Fast Blow
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 63A
Melting I2t 4.65
Approval Agency cURus, VDE
Temperature Range - Operating -55°C ~ 90°C
Dimension 0.126" L x 0.063" W x 0.024" H (3.20mm x 1.60mm x 0.60mm)
DC Cold Resistance 0.0096 Ohms
Base Product Number 3413.0223
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Standard Package 15,000
Win Source Part Number 1108750-3413.0223.26
Ultra Librarian 3D Model Ultra Librarian 3413.0223.26 CAD Model

Description

The SCHURTER Inc. USI 1206 is a board mount fuse that is perfect for use in circuit protection.

  • Package: Tape and Reel
  • Response Time: Fast Blow
  • Voltage Rating (AC): 32V
  • Voltage Rating (DC): 63V
  • Breaking Capacity @ Rated Voltage: 63A
  • DC Cold Resistance: 0.0096 Ohms
  • Standard Package: 15,000
  • Mounting: SMD (SMT)
  • Operating Temperature: -55°C ~ 90°C
  • Dimensions: 0.126" L x 0.063" W x 0.024" H (3.20mm x 1.60mm x 0.60mm)
