Same model may have multiple batches, images only for reference.

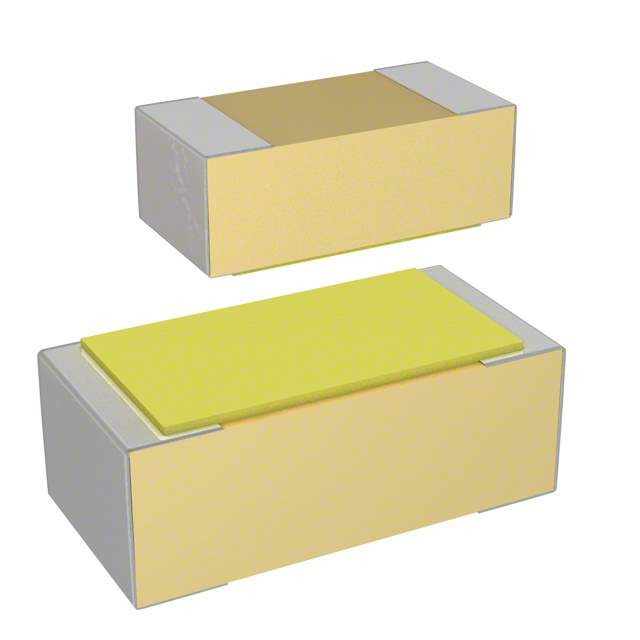

3412.0114.24 Real Image
Same model may have multiple batches, images only for reference.

3412.0114.24

Part No 3412.0114.24
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BOARD MNT 750MA 32VAC 63VDC / 750 mA 32 V AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 0603 (1608 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr SCHURTER Inc.
Series USF 0603
Package Tape & Reel (TR)
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 750 mA
Voltage Rating - AC 32 V
Voltage Rating - DC 63 V
Response Time Fast Blow
Package / Case 0603 (1608 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.04
Approval Agency cURus
Temperature Range - Operating -55°C ~ 90°C
Dimension 0.063" L x 0.031" W x 0.024" H (1.60mm x 0.80mm x 0.60mm)
DC Cold Resistance 0.09 Ohms
Base Product Number 3412.0114
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Standard Package 5,000
Win Source Part Number 1109648-3412.0114.24
Ultra Librarian 3D Model Ultra Librarian 3412.0114.24 CAD Model

Description

The SCHURTER Inc. USF 0603 is a fast blow board mount fuse that is designed to protect circuit components from damage due to overcurrents.

  • Voltage Rating (AC): 32 V
  • Voltage Rating (DC): 63 V
  • Breaking Capacity: 50A @ Rated Voltage
  • DC Cold Resistance: 0.09 Ohms
  • Melting I2t: 0.04
  • Packaging: Tape and Reel
  • Standard Package: 5,000
  • Mounting Type: SMD (SMT)
  • Temperature Range: -55°C to 90°C
  • Dimension: 0.063" L x 0.031" W x 0.024" H (1.60mm x 0.80mm x 0.60mm)
  • ECCN: EAR99 compliant
  • Ideal For: Circuit protection in various electronic applications.
