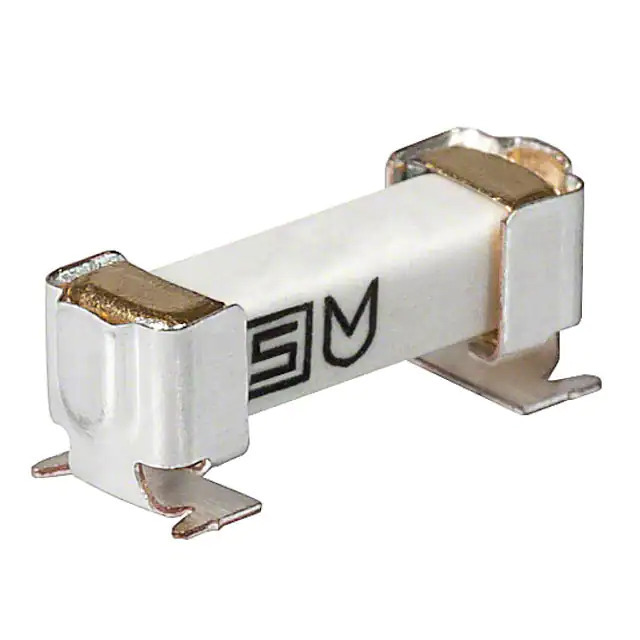

3404.2413.22 Schurter Inc.
Same model may have multiple batches, images only for reference.

3404.2413.22

Part No 3404.2413.22
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BRD MNT 500MA 277VAC 250VDC
Datasheet
3404.2413.22 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr SCHURTER Inc.
Series UMZ 250
Package Tape & Reel
Product Status Active
Mounting Type Requires Holder, Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 500 mA
Voltage Rating - AC 277 V
Voltage Rating - DC 250 V
Response Time Slow Blow
Package / Case 2-SMD, Square End Block with Clip
Breaking Capacity @ Rated Voltage 200A AC, 35A DC
Melting I²t 0.54
Approval Agency cURus, VDE
Temperature Range - Operating -40°C ~ 85°C
Color -
Size / Dimension 0.445" L x 0.165" W x 0.157" H (11.30mm x 4.20mm x 4.00mm)
Base Product Number 3404.2413
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1377454-3404.2413.22
Ultra Librarian 3D Model Ultra Librarian 3404.2413.22 CAD Model

Description

The SCHURTER Inc. UMZ 250 series is a circuit protection fuse from SCHURTER Inc..

  • Size: 0.445" L x 0.165" W x 0.157" H (11.30mm x 4.20mm x 4.00mm)
  • Mounting Type: Holder for Surface Mount
  • Current Rating: 500 mA
  • Voltage Rating: 277VAC and 250VDC
  • Fuse Type: Slow Blow
  • Breaking Capacity (AC): 200A AC @ Rated Voltage
  • Breaking Capacity (DC): 35A DC @ Rated Voltage
  • Melting I²t Value: 0.54
  • Approvals: cURus and VDE
