Same model may have multiple batches, images only for reference.

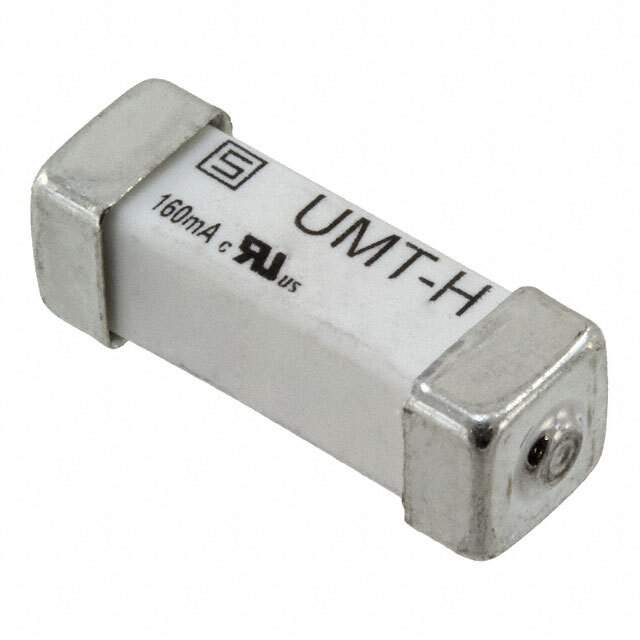

3403.0283.23 Real Image
Same model may have multiple batches, images only for reference.

3403.0283.23

Part No 3403.0283.23
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BRD MNT 8A 250VAC/125VDC
Datasheet
3403.0283.23 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 21 Weeks
Features AC DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Manufacturer Schurter Inc.
Series UMT-H
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C
Mounting Surface Mount
Package 2-SMD, Square End Block
Family Name 3403.0283
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.10.0040
Other Part Number 3403.0283.23-ND, 486-3568-2, 486-3568-1, 486-3568-6
Quantity per package 1500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 906620-3403.0283.23
Ultra Librarian 3D Model Ultra Librarian 3403.0283.23 CAD Model

Description

The 3403.0283.23 is a surface mount type fuse designed for circuit protection.

  • Series: UMT-H
  • Manufacturer: Schurter Inc.
  • Package: 2-SMD, square end block
  • Operating Temperature: -55°C to 125°C
  • Packaging: Reel - TR
  • Quantity per Package: 1500
  • Estimated Production Lead Time: 21 weeks
  • REACH: affected
  • ECCN: EAR99
