Same model may have multiple batches, images only for reference.

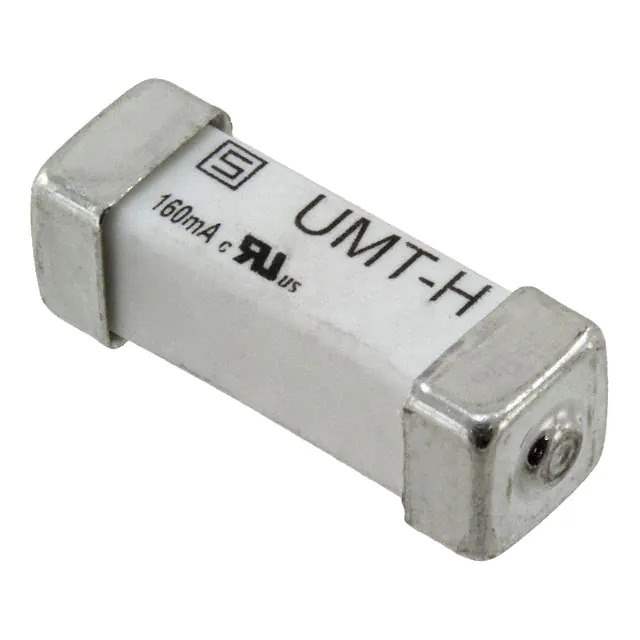

3403.0281.23 Real Image
Same model may have multiple batches, images only for reference.

3403.0281.23

Part No 3403.0281.23
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BRD MT 5A 277VAC 125VDC SMD
Datasheet
3403.0281.23 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr SCHURTER Inc.
Series UMT-H
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 5 A
Voltage Rating - AC 277 V
Voltage Rating - DC 125 V
Response Time Slow Blow
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 1.5kA
Melting I2t 99
Approval Agency CQC, cURus, VDE
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.606" L x 0.211" W x 0.211" H (15.40mm x 5.35mm x 5.35mm)
Base Product Number 3403.0281
Standard Package 1,500 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 855758-3403.0281.23
Ultra Librarian 3D Model Ultra Librarian 3403.0281.23 CAD Model

Description

The 855758-3403.0281.23 is a surface mount board mount fuse from the UMT-H series manufactured by SCHURTER Inc. It is designed for circuit protection in electronic devices and systems.

  • Series: UMT-H
  • Response Time: Slow Blow
  • Voltage Rating: 277V AC / 125V DC
  • Breaking Capacity: 1.5kA
  • Size: 0.606" L x 0.211" W x 0.211" H (15.40mm x 5.35mm x 5.35mm)
  • Standard Package: 1,500 pieces
  • Mounting Method: Surface Mount
  • Approvals: CQC, cURus, and VDE
