Same model may have multiple batches, images only for reference.

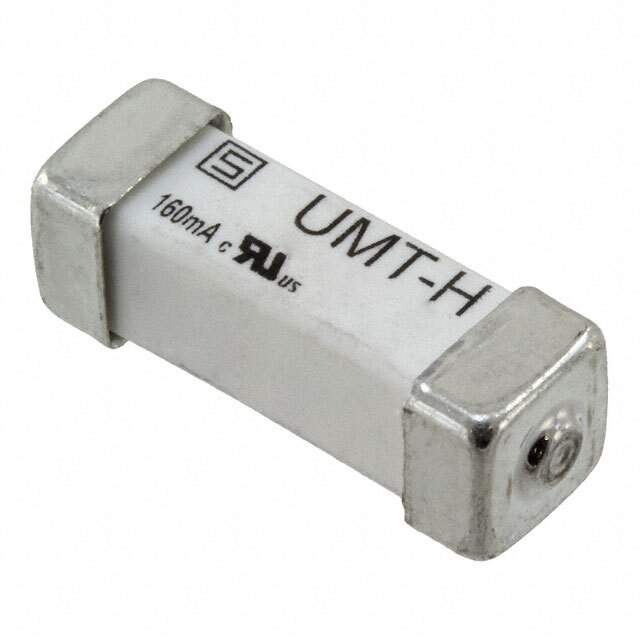

3403.0266.23 Real Image
Same model may have multiple batches, images only for reference.

3403.0266.23

Part No 3403.0266.23
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE 160MA 277AC/250DC T-LAG SMD / 160 mA 277 V AC 250 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Datasheet
3403.0266.23 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr SCHURTER Inc.
Series UMT-H
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 160 mA
Voltage Rating - AC 277 V
Voltage Rating - DC 250 V
Response Time Slow Blow
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 1.5kA
Melting I2t 0.045
Approval Agency CQC, cURus, VDE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.606" L x 0.211" W x 0.211" H (15.40mm x 5.35mm x 5.35mm)
Base Product Number 3403.0266
MSL Level Vendor Undefined
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.10.0040
Other Names 486-3059-6,486-3059-2,486-3059-1
Standard Package 1,500
Win Source Part Number 1031426-3403.0266.23
Ultra Librarian 3D Model Ultra Librarian 3403.0266.23 CAD Model

Description

The UMT-H circuit protection fuse from SCHURTER Inc. is a board mount (cartridge style excluded) type fuse with a voltage rating of 277V AC and 250V DC.

  • Manufacturer: SCHURTER Inc.
  • Series: UMT-H
  • Fuse Type: Board mount (cartridge style excluded)
  • Response Time: Slow Blow
  • Voltage Rating: 277V AC and 250V DC
  • Breaking Capacity: 1.5kA @ rated voltage
  • Melting I2t: 0.045
  • Standard Package: 1,500
  • Mounting: SMD (SMT)
  • Package/Case: 2-SMD, Square End Block
  • Operating Temperature Range: -55°C to 125°C
  • Dimensions: 0.606" L x 0.211" W x 0.211" H (15.40mm x 5.35mm x 5.35mm)
  • REACH: Affected
  • ECCN: EAR99
