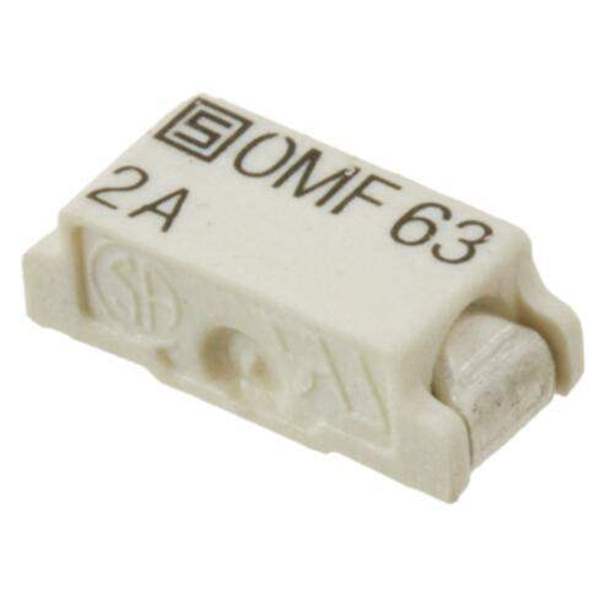

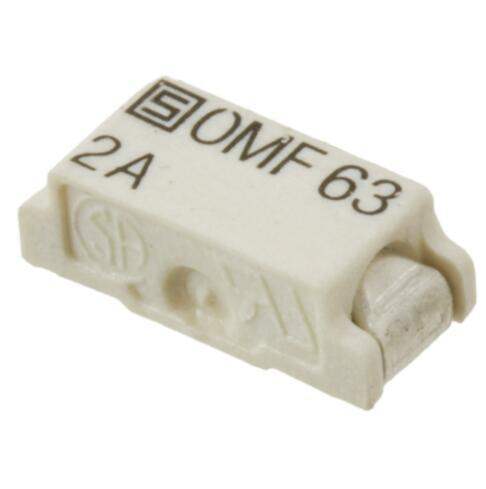

3402.0013.22 SCHURTER Inc.
Same model may have multiple batches, images only for reference.

3402.0013.22

Part No 3402.0013.22
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BRD MNT 2.5A 63VAC/VDC 2SMD
Datasheet
3402.0013.22 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer SCHURTER Inc.
Category Circuit Protection Fuses
Product Status Active
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 2.5 A
Voltage Rating - AC 63 V
Voltage Rating - DC 63 V
Response Time Fast Blow
Approval Agency cURus
Win Source Part Number WS1207985-3402.0013.22
Ultra Librarian 3D Model Ultra Librarian 3402.0013.22 CAD Model

Description

SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
