Same model may have multiple batches, images only for reference.

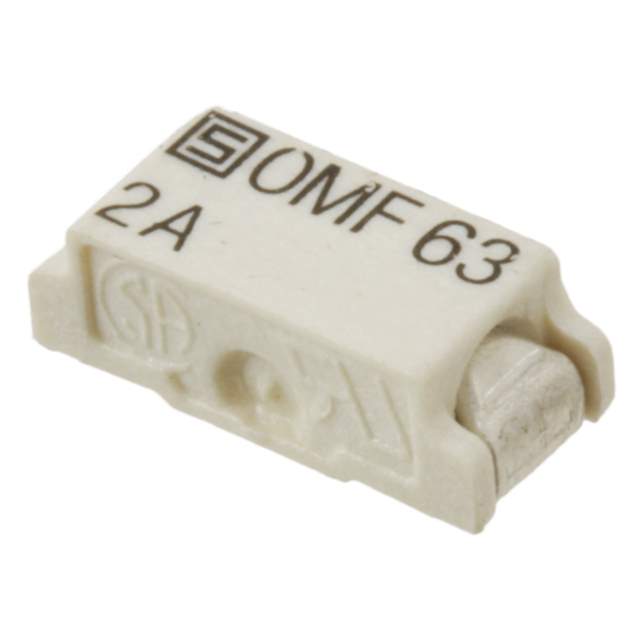

3402.0006.22 Real Image
Same model may have multiple batches, images only for reference.

3402.0006.22

Part No 3402.0006.22
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BOARD MOUNT 250MA 63VAC/VDC
Datasheet
3402.0006.22 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Schurter Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 250mA
Voltage Rating - AC 63V
Voltage Rating - DC 63V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 50A
Nominal Melting - I2t 0.0058
Approvals cURus
Temperature Range - Operating -55°C to 125°C
Dimension 0.291" L x 0.122" W x 0.102" H (7.40mm x 3.10mm x 2.60mm)
Win Source Part Number 1021829-3402.0006.22
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Sensing & Instrumentation
Ultra Librarian 3D Model Ultra Librarian 3402.0006.22 CAD Model

Description

The 1021829-3402.0006.22 is a board mount fuse with a current rating of 250mA and a voltage rating of 63V from Schurter Inc..

  • Current Rating: 250mA
  • Voltage Rating: 63V
  • Response Time: Fast
  • Breaking Capacity: 50A @ rated voltage
  • Package: Reel - TR
  • Temperature Range: -55°C to 125°C
  • Supply and Demand Status: Balanced
  • Application: Sensing and Instrumentation
