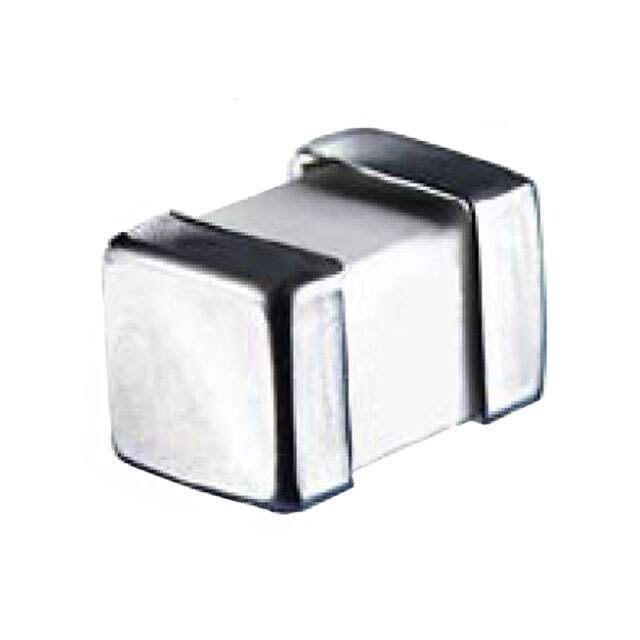

3-101-056 SCHURTER Inc.
Same model may have multiple batches, images only for reference.

3-101-056

Part No 3-101-056
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE CERM 5A 125VAC/VDC 2SMD
Datasheet
3-101-056 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1208503-3-101-056
Manufacturer SCHURTER Inc.
Category Circuit Protection- Fuses
Package Bulk
Product Status Active
Mounting Type Surface Mount
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 5 A
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Ultra Librarian 3D Model Ultra Librarian 3-101-056 CAD Model

Description

Description
- IEC Approved
- For high current applications
- Max. ambient temperature 125 °C
- Impermeable to potting compound used to achieve hermetic seal for use in intrinsically safe applications according to ATEx and IECEx requirements.
