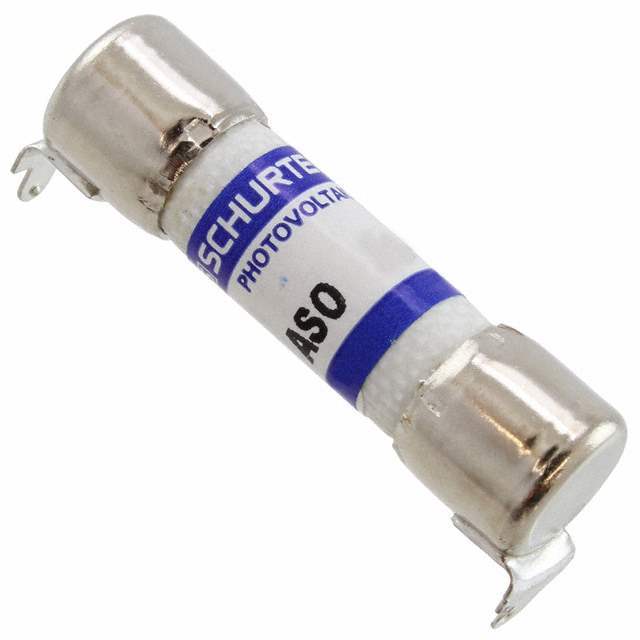

0090.1015 SCHURTER Inc.
Same model may have multiple batches, images only for reference.

0090.1015

Part No 0090.1015
Manufacturer Schurter Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 15A 1KVDC 5AG
Datasheet
0090.1015 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer SCHURTER Inc.
Packaging Bulk
Part Status Active
Mounting Type Requires Holder
Fuse Type Cartridge
Current Rating (Amps) 15A
Applications Solar (Photovoltaic)
Approval Agency UL, VDE
Operating Temperature -50°C ~ 125°C
Breaking Capacity @ Rated Voltage 20kA
Ultra Librarian 3D Model Ultra Librarian 0090.1015 CAD Model

Description

● Meets the new UL and IEC photovoltaic standards

● UL Recognized for 1000 VDC

● High breaking capacity of 20 kA @ 1000 VDC

● Low min. interrupting rating of 1.35 x In

● Meets the requirements of IEC 61730-2 for PV module safety
