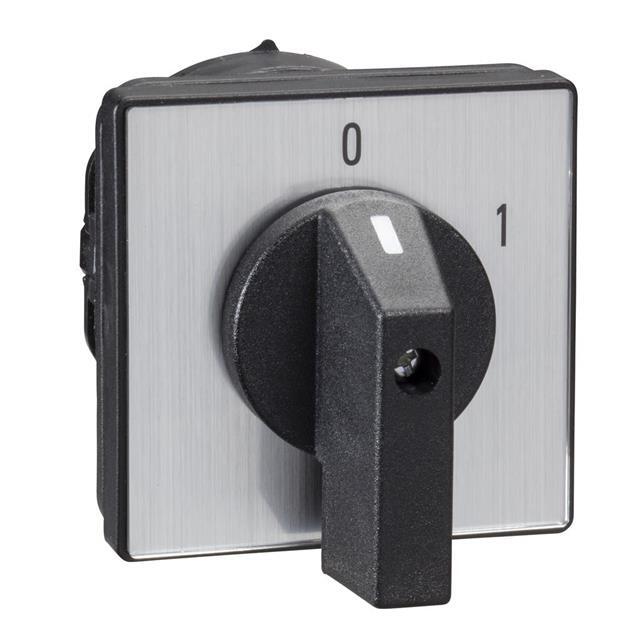

K30A001AP Schneider Electric – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

K30A001AP

Part No K30A001AP
Manufacturer Schneider Electric
Catalog Selector Switches
Description Selector Switch 2 Position SPST 14A (AC) 220 V Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Schneider Electric
Series Harmony K
Packaging Box
Type Standard
Circuit SPST
Number of Positions 2
Switch Function On-Off
Current Rating (Amps) 14A (AC)
Voltage Rating - AC 220 V
Illumination Non-Illuminated
Mounting Type Panel Mount
Termination Style Screw Terminal
Ingress Protection IP40
Temperature Range - Operating -25°C ~ 55°C
Mechanical Life 300,000 Cycles
Approval Agency cURus
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
Win Source Part Number 1478885-K30A001AP
Ultra Librarian 3D Model Ultra Librarian K30A001AP CAD Model
