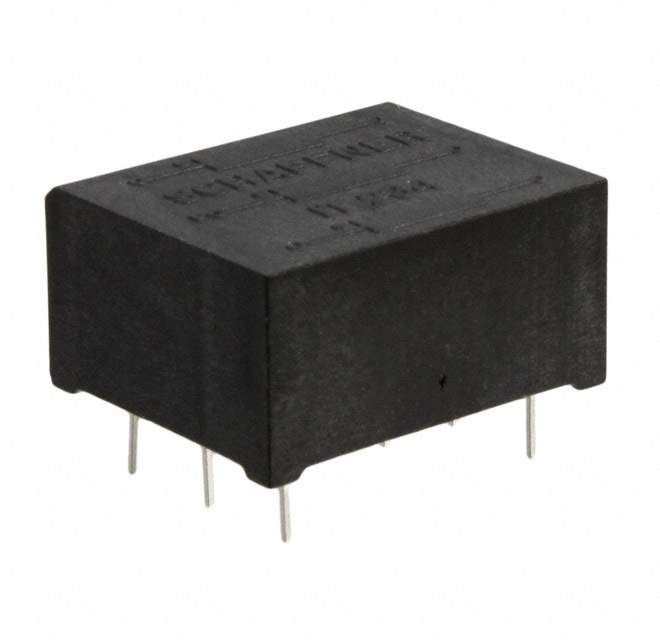

IT234 Real Image
Same model may have multiple batches, images only for reference.

IT234

Part No IT234
Manufacturer Schaffner EMC Inc.
Catalog Pulse Transformers
Description XFRMR PULSE 3:1:1 DL 17MH .25A / 17mH Data/Voice Coupling Pulse Transformer 3:1:1 Through Hole
Datasheet
IT234 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Manufacturer Schaffner EMC Inc.
Packaging Tray
Transformer Type Data/Voice Coupling
Inductance 17mH
Mounting Through Hole
Size / Dimension 1.063" L x 0.886" W (27.00mm x 22.50mm)
Temperature Range - Operating -25°C ~ 70°C
Weight 0.46 oz (13.11 g)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Part Number 800058,22-458,817-1504,IT 234
Standard Package 100
Win Source Part Number 1328488-IT234
Ultra Librarian 3D Model Ultra Librarian IT234 CAD Model

Description

The IT234 is a high-quality pulse transformer from Schaffner EMC Inc. that is perfect for a wide range of applications.

  • Size/Dimension: 1.063" L x 0.886" W (27.00mm x 22.50mm)
  • Type: data/voice coupling transformer
  • Inductance: 17mH
  • Package: tray
  • Standard Package: 100
  • Weight: 0.46 oz (13.11 g)
  • Operating Temperature: -25°C to 70°C
  • ECCN: EAR99
  • REACH Unaffected: Yes
  • HTSUS: 8504.31.2000
  • Other Part Numbers: 800058, 22-458, and 817-1504
  • ROHS3 Compliant: Yes
