Same model may have multiple batches, images only for reference.

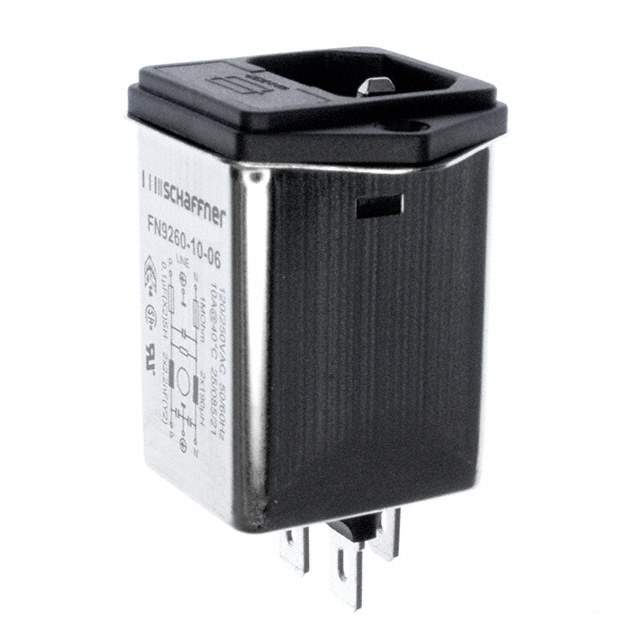

FN9260-10-06 Real Image
Same model may have multiple batches, images only for reference.

FN9260-10-06

Part No FN9260-10-06
Manufacturer Schaffner EMC Inc.
Catalog AC Power Connectors
Description PWR ENT MOD RCPT IEC320-C14 PNL / Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
Datasheet
FN9260-10-06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>AC Power Connectors>Power Entry Modules (PEM)
Manufacturer Schaffner EMC Inc.
Packaging Bulk
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades - Module
Number of Positions 3
Filter Type Filtered (EMI, RFI) - Commercial
Current Rating - Filter 10A
Accomodates a Fuse Yes (Fuse Not Included)
Mounting Panel Mount, Flange
Termination Quick Connect - 0.250" (6.3mm)
Fuse Holder, Drawer Fuse Holder, Twin Fused
Panel Cutout Dimensions Rectangular - 29.00mm x 33.00mm
Material Flammability Rating UL94 V-2
Ingress Protection IP40
Approval Agency CQC, CSA, ENEC, UL
Base Product Number FN9260
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4030
Other Part Number 293-879,FN92601006,806059,817-1489,FN9260 -10 -06
Standard Package 60
Win Source Part Number 1334160-FN9260-10-06
Ultra Librarian 3D Model Ultra Librarian FN9260-10-06 CAD Model

Description

Schaffner EMC Inc. power entry modules (PEM) are designed to provide reliable and efficient performance in a variety of applications.

  • Positions: 3
  • Connector Type: Receptacle
  • Application: Filtered (EMI, RFI) commercial
  • Contacts: Male blades - module
  • Termination: Quick connect 0.250 inches (6.3mm)
  • Mounting: Panel mount, flange
  • Fuse Holder: Twin fused fuse holder drawer
  • Temperature Range: -40°C to 105°C
  • RoHS3 Compliant: Yes
