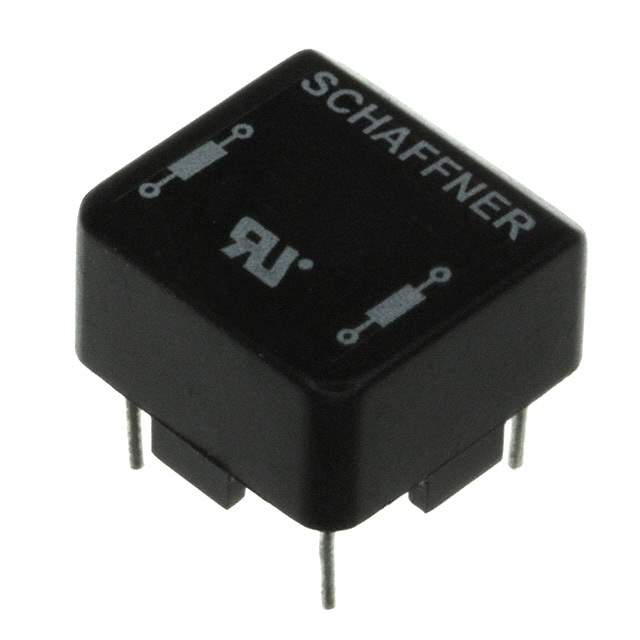

RN102-0.6-02 Real Image
Same model may have multiple batches, images only for reference.

RN102-0.6-02

Part No RN102-0.6-02
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 4.4MH 600MA 2LN TH / Common Mode Chokes Dual 4.4mH 10kHz 0.6A 0.385Ohm DCR Thru-Hole
Datasheet
RN102-0.6-02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Schaffner EMC Inc.
Series RN
Packaging Tray
Part Status Obsolete(EOL)
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 4.4mH @ 1kHz
Current Rating (Maximum) 600mA (Typ)
DC Resistance (DCR) (Maximum) 385 mOhm (Typ)
Voltage Rating - AC 250V
Operating Temperature Range -40°C ~ 125°C
Approvals UR, VDE
Mounting Style Through Hole
Dimension 0.551" L x 0.551" W (14.00mm x 14.00mm)
Height (Maximum) 0.366" (9.30mm)
Package Horizontal, 4 PC Pin
Win Source Part Number 793302-RN102-0.6-02
Popularity Medium
Supply and Demand Status Limited
Quantity per package 40
Family Name RN
ECCN EAR99
Country of Origin Thailand
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian RN102-0.6-02 CAD Model

Description

The 793302-RN102-0.6-02 from Schaffner EMC Inc. is a power line filter with a voltage rating of 250V and a current rating of 600mA.

  • Package: Horizontal, 4 PC pin
  • Mounting Style: Through-hole
  • Filter Type: 2-line
  • Inductance @ 1kHz: 4.4mH
  • Approvals: UR, VDE
  • Operating Temperature: -40°C to 125°C
  • Supply and Demand: Limited
  • Quantity per Package: 40
