Same model may have multiple batches, images only for reference.

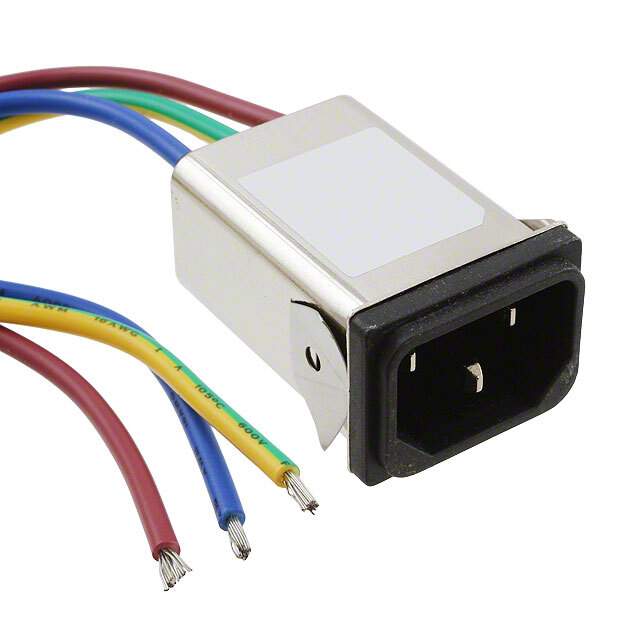

FN9222SB-10-07 Real Image
Same model may have multiple batches, images only for reference.

FN9222SB-10-07

Part No FN9222SB-10-07
Manufacturer Schaffner EMC Inc.
Catalog Power Entry Connectors - Inlets, Outlets, Modules
Description PWR ENT RCPT IEC320-C14 PNL WIRE
Datasheet
FN9222SB-10-07 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Schaffner EMC Inc.
Series FN 9222
Packaging Bulk
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades
Current - UL 10A
Voltage - UL 250VAC
Filter Type Filtered (EMI, RFI) - Commercial, Medical
Fuse No
Number of Positions 3
Mounting Panel Mount, Snap-In
Termination Wire Leads
Features Bleed Resistor
Panel Cutout Dimensions Rectangular - 29.40mm x 20.80mm
Panel Thickness 0.028" ~ 0.059" (0.70mm ~ 1.50mm)
Material Flammability Rating UL94 V-2
Ingress Protection IP40
Approvals CQC, CSA, ENEC, UL
Win Source Part Number 762461-FN9222SB-10-07
Popularity Medium
Supply and Demand Status Limited
Quantity per package 120
Family Name FN 9222
Introduction Date June 06, 2008
ECCN EAR99
Country of Origin Thailand
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian FN9222SB-10-07 CAD Model

Description

The FN9222SB-10-07 is a filtered (EMI, RFI) - commercial, medical connector manufactured by Schaffner EMC Inc.

  • Connector Type: Panel mount, snap-in
  • Panel Cutout Dimension: 29.40mm x 20.80mm
  • Material Flammability Rating: UL94 V-2
  • Approvals: CQC, CSA, ENEC, UL
  • Medium Market Popularity: Yes
  • Limited Supply and Demand Status: Yes
