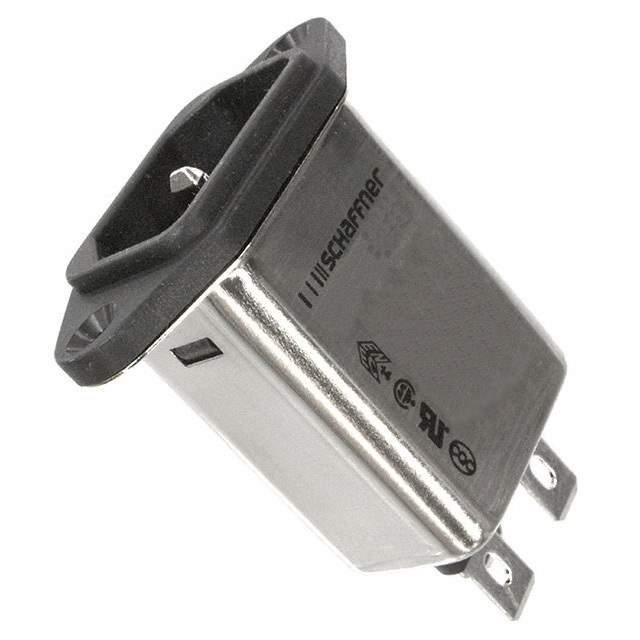

FN9222R-20-06 Real Image
Same model may have multiple batches, images only for reference.

FN9222R-20-06

Part No FN9222R-20-06
Manufacturer Schaffner EMC Inc.
Catalog Power Entry Connectors - Inlets, Outlets, Modules
Description PWR ENT RCPT IEC320-C20 PANEL QC
Datasheet
FN9222R-20-06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 9 Weeks
Features Power Entry Connector Receptacle, Male Blades IEC 320-C20 Panel Mount, Flange
Manufacturer Schaffner EMC Inc.
Series FN 9222
Package Tray
Mounting Panel Mount, Flange
Family Name FN9222
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4030
Other Part Number FN9222R2006, 817-1452, 299-079, 803925
Quantity per package 60
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 872115-FN9222R-20-06
Ultra Librarian 3D Model Ultra Librarian FN9222R-20-06 CAD Model

Description

The Schaffner EMC Inc. FN 9222R-20-06 is a power entry connector receptacle with male blades IEC 320-C20 panel mount and flange.

  • Package: Tray
  • Mounting: Panel with a flange
  • Category: Connectors
  • Family Name: FN9222
  • Win Source part number: 872115-FN9222R-20-06
  • Supply and Demand Status: Limited
  • Estimated Production Lead Time: 9 weeks
  • REACH: Unaffected
