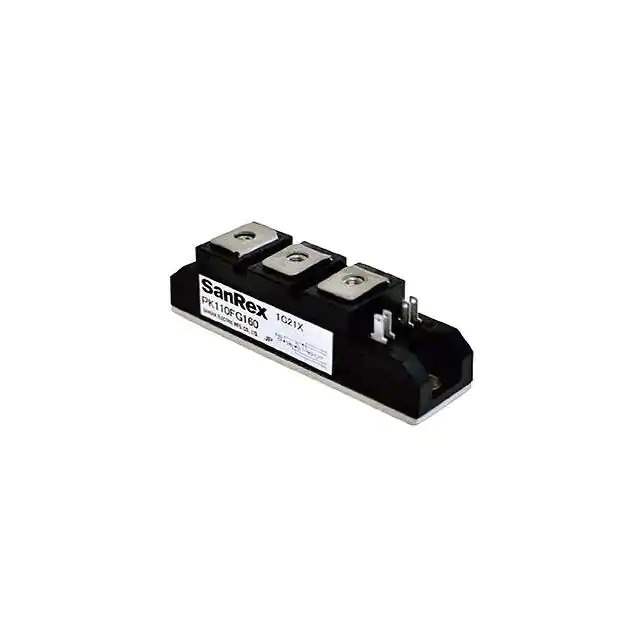

The 276915-PK55FG160 is a thyristor module in the Discrete Semiconductor Products - Thyristors - SCRs - Modules category. It is part of a series denoted by a dash and comes in a tray package with a standard package of 1 piece.

• Voltage Rating (Off State): 1.6 kV
• Gate Trigger Voltage (Vgt): 3 V (maximum)
• Gate Trigger Current (Igt): 50 mA (maximum)
• On-State Current (It (AV)): 55 A (maximum)
• On-State RMS Current (It (RMS)): 86 A (maximum)
• Non-Repetitive Surge Current (50Hz): 1190A
• Non-Repetitive Surge Current (60Hz): 1300A
• Structure: series connection of all SCRs
• Number of SCRs: 2
• Mounting Type: chassis mount
• Package/Case: module
• Operating Temperature: -40°C to 125°C
• ECCN: EAR99
• MSL Level: 1
• HTSUS Code: 8541.30.0040
• Manufacturer: SanRex Corporation
