Same model may have multiple batches, images only for reference.

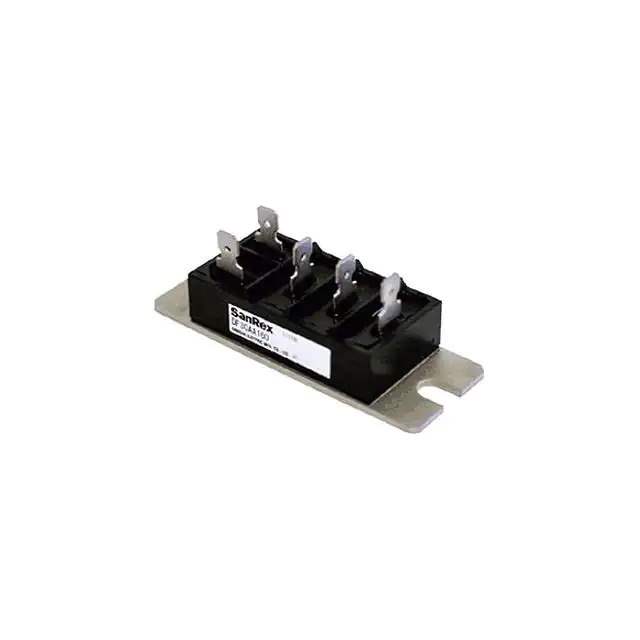

DF20AA120 Real Image
Same model may have multiple batches, images only for reference.

DF20AA120

Part No DF20AA120
Manufacturer SanRex Corporation
Catalog Bridge Rectifiers
Description DIOE MODULE 1200V 20A
Datasheet
DF20AA120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SanRex Corporation
Package Tray
Product Status Active
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Max) 1.2 kV
Current - Average Rectified (Io) 20 A
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 20 A
Current - Reverse Leakage @ Vr 3 mA @ 1200 V
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 584430-DF20AA120
Ultra Librarian 3D Model Ultra Librarian DF20AA120 CAD Model

Description

The 584430-DF20AA120 is a three-phase bridge rectifier designed for use in discrete semiconductor applications.

  • Manufacturer: SanRex Corporation
  • Status: Active
  • Category: Diodes
  • Technology: Standard
  • Average Rectified Current: 20A
  • Maximum Forward Voltage: 1.25V @ 20A
  • Reverse Leakage Current: 3mA @ 1200V
  • Peak Reverse Voltage: 1.2kV
  • Mounting: Chassis Mount
  • Package: Module
  • Operating Temperature Range: -40°C to 150°C
