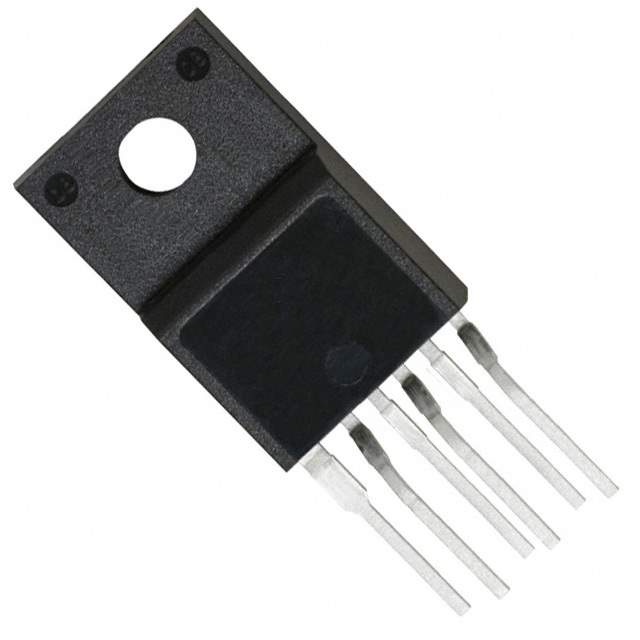

STR-W6253D Real Image
Same model may have multiple batches, images only for reference.

STR-W6253D

Part No STR-W6253D
Manufacturer Sanken
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC PWM OFF-LINE SW REG TO-220F-6
Datasheet
STR-W6253D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sanken
Packaging Tube/Rail
Status Obsolete(EOL)
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 650V
Topology Flyback
Voltage - Start Up 15.5V
Supply Voltage - Operating 8.9 V to 18 V
Duty Cycle 75%
Frequency - Switching 60kHz to 74kHz
Power (Watts) 90W
Fault Protection Current Limiting, Over Load, Over Temperature, Over Voltage
Control Operating Temperature -20°C to 115°C (TA)
Case / Package TO-220F-6L
Mounting Through Hole
Win Source Part Number 109815-STR-W6253D
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian STR-W6253D CAD Model

Description

The Sanken STR-W6253D is a flyback topology power supply IC with an output isolation feature.

  • Manufacturer: Sanken
  • Topology: Flyback
  • Component Type: Power supply IC
  • Output Isolation: Output isolation feature
  • Power Rating: 90W
  • Voltage Breakdown: 650V
  • Duty Cycle: 75%
  • Frequency: 60kHz to 74kHz
  • Fault Protection: Current limiting, over load, over temperature, and over voltage
  • Package: TO-220F-6L
  • Supply Voltage: 8.9 V to 18 V
  • Control Operating Temperature: -20°C to 115°C (TA)
  • Category: Integrated Circuits
  • Popularity: Medium
  • Supply and Demand Status: Limited
