Same model may have multiple batches, images only for reference.

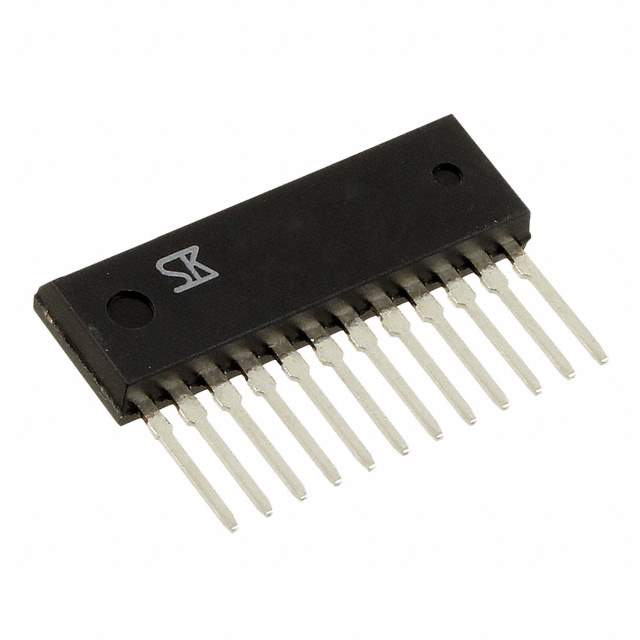

SMA6511 Real Image
Same model may have multiple batches, images only for reference.

SMA6511

Part No SMA6511
Manufacturer Sanken
Catalog Transistors (BJT) - Arrays
Description TRANS 4NPN/1PNP DARL 60V 12SIP
Datasheet
SMA6511 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Tube/Rail
Status Active
Transistor Polarity 4 NPN, 1 PNP Darlington
Maximum Current Collector 1.5A, 3A
VCEO Maximum Collector-Emitter Breakdown Voltage 60V
Max Vce (sat) 1.5V @ 2mA, 1A
Collector Cut-off Current(Max) 100μA (ICBO)
Typical Gain (hFE) (Min) 2000 @ 1A, 4V
Maximum Power Dissipation 4W
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package 12-SIP
Win Source Part Number 046983-SMA6511
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SMA6511 CAD Model

Description

It is a limited supply and demand product.

  • Case/Package: 12-SIP
  • Maximum Current Collector: 1.5A, 3A
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 60V
  • Maximum Power Dissipation: 4W
  • Typical Gain (hFE) (Min): 2000 @ 1A, 4V
  • Mounting: Through-hole
  • Category: Discrete Semiconductor Product
