Same model may have multiple batches, images only for reference.

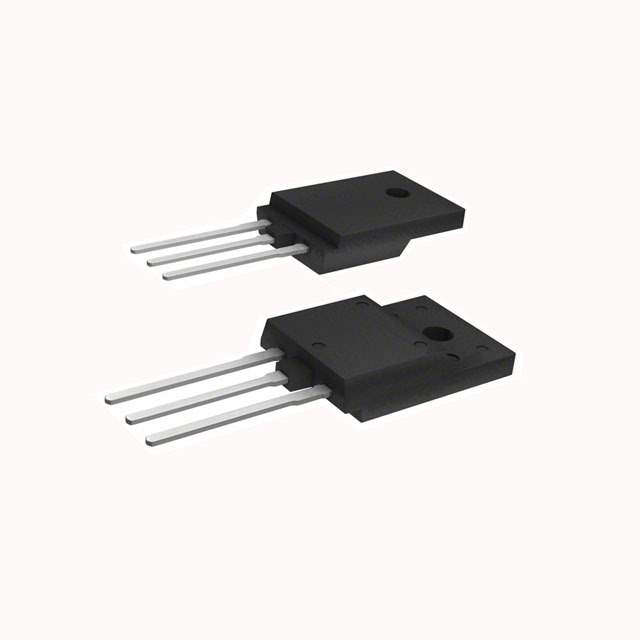

FML-4202S Real Image
Same model may have multiple batches, images only for reference.

FML-4202S

Part No FML-4202S
Manufacturer Sanken
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 200V 20A TO3PF
Datasheet
FML-4202S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Bulk
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) (per Diode) 20A
Voltage - Forward (Vf) (Max) @ If 980mV @ 10A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 40ns
Current - Reverse Leakage @ Vr 10μA @ 200V
Operating Temperature - Junction -40°C to 150°C
Mounting Through Hole
Case / Package TO-3PF
Win Source Part Number 040311-FML-4202S
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian FML-4202S CAD Model

Description

The FML-4202S is a diode pair from Sanken.

  • Packaging: Bulk
  • Mounting Type: Through Hole
  • Diode Type: Standard
  • Reverse Voltage: 200V
  • Forward Voltage: 980mV @ 10A
  • Reverse Recovery Time: 40ns
  • Operating Temperature Range: -40°C to 150°C
  • Diode Configuration: 1 pair common cathode
  • Average Rectified Current per Diode: 20A
  • Case/Package: TO-3PF
  • Speed/Frequency: Fast Recovery = 200mA (Io)
  • Supply and Demand Status: Limited
