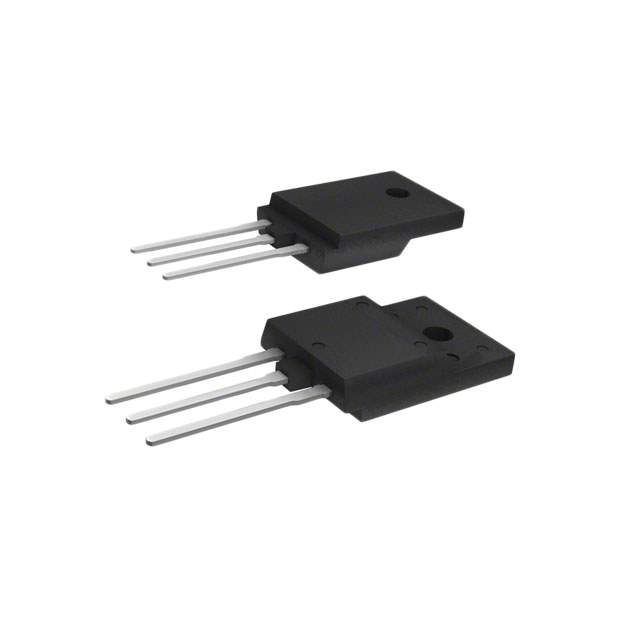

2SA1860 Real Image
Same model may have multiple batches, images only for reference.

2SA1860

Part No 2SA1860
Manufacturer Sanken
Catalog Transistors (BJT) - Single
Description TRANS PNP 150V 14A TO-3PF
Datasheet
2SA1860 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Bulk
Transistor Type PNP
Current - Collector (Ic) (Maximum) 14A
Voltage - Collector Emitter Breakdown (Maximum) 150V
Vce Saturation (Maximum) @ Ib, Ic 2V @ 500mA, 5A
Current - Collector Cutoff (Maximum) 100μA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 50 @ 5A, 4V
Power - Max 80W
Frequency - Transition 50MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TO-3P-3 Full Pack
Manufacturer Package TO-3PF
Win Source Part Number 762397-2SA1860
Family Name 2SA1860
Introduction Date July 07, 1999
ECCN EAR99
Estimated EOL Date 2024
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2SA1860 CAD Model

Description

The 2SA1860 from Sanken is a PNP transistor type device that is ideal for use in various discrete semiconductor products applications.

  • Current - Collector (Ic) (Maximum): 14A
  • Voltage - Collector Emitter Breakdown (Maximum): 150V
  • Vce Saturation (Maximum) @ Ib, Ic: 2V @ 500mA, 5A
  • Current - Collector Cutoff (Maximum): 100μA (ICBO)
  • DC Current Gain (hFE) (Minimum) @ Ic, Vce: 50 @ 5A, 4V
