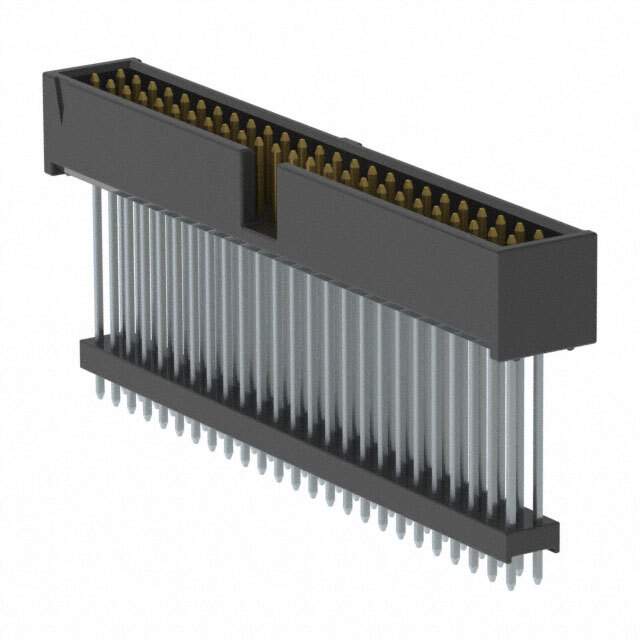

The Flex Stack ZSS series header connector is a high-quality, reliable, and durable connector designed for use in board-to-board or cable applications.

• Positions: 50
• Keying: slot
• Feature: elevated
• Contact Type: male pin
• All Positions: loaded
• Rows: two
• Termination: solder
• Fastening Type: push-pull
• Shrouding: 4 walls
• Insulation Material: polyester and glass-filled
• Pitch Mating: 0.100" (2.54mm)
• Contact Finish Mating: gold
• Contact Finish Thickness Mating: 30.0μin (0.76μm)
• Contact Finish Post: tin
• Insulation Color: black
• Mounting Type: through-hole
• Contact Length Post: 0.114" (2.90mm)
• Overall Contact Length: 1.130" (28.70mm)
• Insulation Height: 1.016" (25.81mm)
• Contact Shape: square
• Operating Temperature: -55°C ~ 125°C
• Current Rating: 3A
• ECCN: EAR99
• Manufacturer: Samtec Inc.
