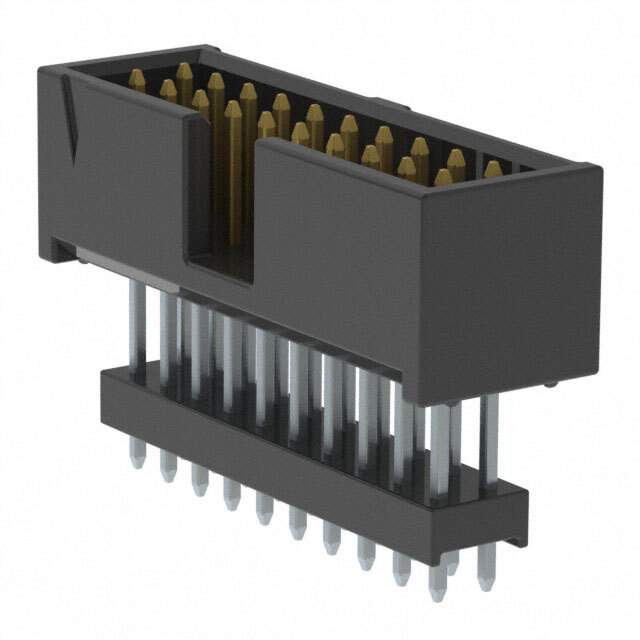

ZSS-110-02-S-D-627

Name: ZSS-110-02-S-D-627
Brand: Samtec Inc.
SKU: 986613
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ZSS-110-02-S-D-627
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HDR .100" 20POS / Connector Header Through Hole 20 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Flex Stack, ZSS
Package	Bulk
Connector Type	Header, Elevated
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.250" (6.35mm)
Contact Length - Post	0.103" (2.62mm)
Overall Contact Length	0.730" (18.54mm)
Insulation Height	0.627" (15.93mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyester, Glass Filled
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Base Product Number	ZSS-110
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1
Win Source Part Number	986613-ZSS-110-02-S-D-627
Ultra Librarian 3D Model	Ultra Librarian ZSS-110-02-S-D-627 CAD Model

Alternative Products

Description

The Flex Stack ZSS series male pin header connector is an elevated type connector with a shrouded 4 wall design.

Positions: 20
Rows: 2
Loaded: All Positions
Pitch: 0.100 inches (2.54mm)
Connection Style: Board to Board or Cable
Contact Material: Phosphor Bronze
Mating Finish Thickness: 30.0μin (0.76μm) Gold
Post Finish: Tin
Current Rating: 3A
Temperature Range: -55°C to 125°C
Insulation Material: Polyester and Glass Filled (UL94 V-0)
Contact Shape: Square
Mating Contact Length: 0.250 inches (6.35mm)
Post Contact Length: 0.103 inches (2.62mm)
Overall Contact Length: 0.730 inches (18.54mm)
Insulation Height: 0.627 inches (15.93mm)
