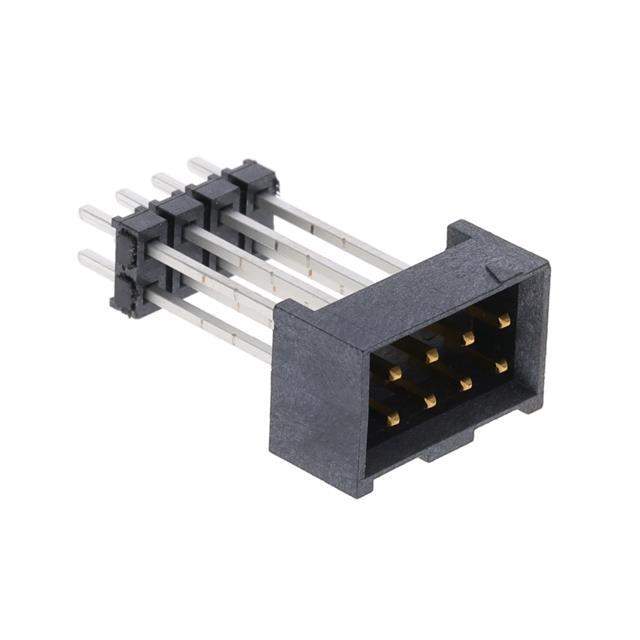

ZLTMM-104-70-S-D-594

Name: ZLTMM-104-70-S-D-594
Brand: Samtec Inc.
SKU: 1106287
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ZLTMM-104-70-S-D-594
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	2.00 MM SHROUDED VARIABLE STACK / Connector Header Through Hole 8 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Flex Stack, ZLTMM
Package	Bulk
Connector Type	Header, Elevated
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	8
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Contact Length - Post	0.124" (3.15mm)
Overall Contact Length	0.693" (17.60mm)
Insulation Height	0.594" (15.09mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyamide (PA), Nylon
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 125°C
Insulation Color	Black
Base Product Number	ZLTMM-104
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1
Win Source Part Number	1106287-ZLTMM-104-70-S-D-594
Ultra Librarian 3D Model	Ultra Librarian ZLTMM-104-70-S-D-594 CAD Model

Alternative Products

Description

This rectangular connector is a male pin header with a Win Source Part Number of 1106287-ZLTMM-104-70-S-D-594.

Category: Connectors, Interconnects
Packaging: Elevated
Connector Type: Header
Contact Type: Male Pin
Number of Positions: 8
Positions Loaded: All
Number of Rows: 2
Termination: Solder
Fastening Type: Push-Pull
Contact Material: Phosphor Bronze
Insulation Material: Polyamide (PA), Nylon
Style: Board to Board
Pitch-Mating: 0.079" (2.00mm)
Contact Finish-Mating: Gold
Contact Finish Thickness-Mating: 30.0µin (0.76µm)
Contact Finish-Post: Tin
Insulation Color: Black
Mounting Type: Through Hole
Shrouding: Shrouded - 4 Wall
Row Spacing-Mating: 0.079" (2.00mm)
Contact Length-Post: 0.124" (3.15mm)
Overall Contact Length: 0.693" (17.60mm)
Insulation Height: 0.594" (15.09mm)
Contact Shape: Square
Temperature Range-Operating: -55°C ~ 125°C
MSL Level: 1 (Unlimited)
HTSUS: 8536.69.4040
Manufacturer: Samtec Inc.
Base Product Number: ZLTMM-104
