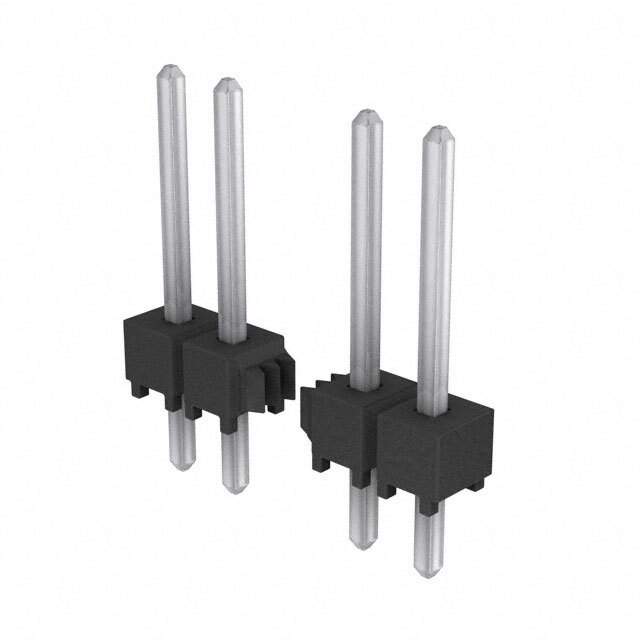

TSW-107-14-T-S

Name: TSW-107-14-T-S
Brand: Samtec Inc.
SKU: 798516
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TSW-107-14-T-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER 7POS .100" SNGL TIN / Conn Unshrouded Header HDR 7 POS 2.54mm Solder ST Top Entry Thru-Hole Bag
Datasheet	TSW-107-14-T-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Series	TSW
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Style	Board to Board or Cable
Shrouding	Unshrouded
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Mounting Style	Through Hole
Termination	Solder
Contact Length - Mating	0.320" (8.13mm)
Contact Length - Post	0.110" (2.79mm)
Overall Contact Length	0.530" (13.46mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polybutylene Terephthalate (PBT)
Operating Temperature Range	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Win Source Part Number	798516-TSW-107-14-T-S
Popularity	Medium
Supply and Demand Status	Limited
Family Name	HTSW
Introduction Date	September 18, 2001
ECCN	EAR99
Country of Origin	China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian TSW-107-14-T-S CAD Model

Alternative Products

Description

The Samtec Inc. TSW-107-14-T-S is a header connector with 7 positions, designed for use in board-to-board or cable applications.

Connector Type: Male pin
Mounting: Through-hole
Contact Material: Phosphor bronze
Contact Finish: Tin
Operating Temperature: -55°C to 105°C
Shrouding: Unshrouded
Contact Shape: Square
Insulation Material: Polybutylene Terephthalate (PBT)
Insulation Color: Black
ECCN: EAR99
Halogen Free: Yes
Estimated EOL Date: 2027
