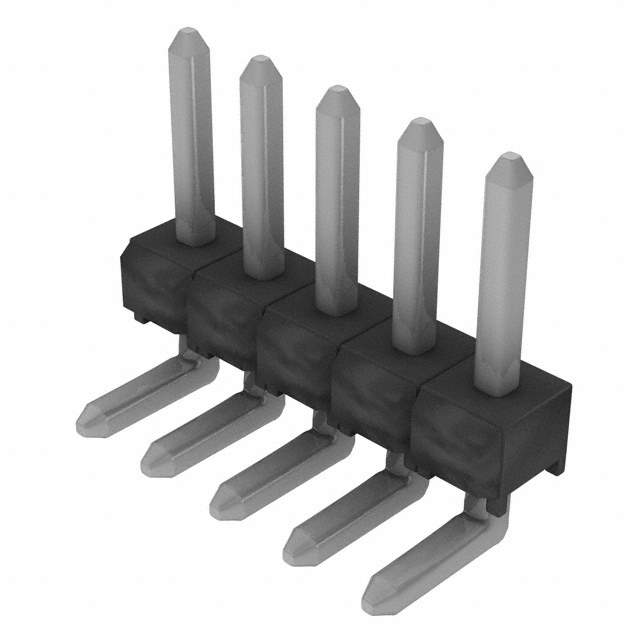

Same model may have multiple batches, images only for reference.

TSW-105-25-T-S-RA

Name: TSW-105-25-T-S-RA
Brand: Samtec Inc.
SKU: 1142933
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TSW-105-25-T-S-RA
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 5POS 2.54MM / Connector Header Through Hole, Right Angle 5 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TSW
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	5
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.320" (8.13mm)
Contact Length - Post	0.100" (2.54mm)
Insulation Height	0.119" (3.02mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polybutylene Terephthalate (PBT)
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	TSW-105
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1
Win Source Part Number	1142933-TSW-105-25-T-S-RA
Ultra Librarian 3D Model	Ultra Librarian TSW-105-25-T-S-RA CAD Model

Alternative Products

Description

The TSW series connector from Samtec Inc. is a 5-position, 1-row header connector with male pin contacts.

Positions: 5
Rows: 1
Contact Gender: Male Pin
Mounting Type: Through-Hole, Right Angle
Shrouding: Unshrouded
Pitch-Mating: 0.100” (2.54mm)
Insulation Color: Black
Insulation Material: Polybutylene Terephthalate (PBT)
Contact Material: Phosphor Bronze
Contact Finish: Tin for Mating and Post
Temperature Range: -55°C to 105°C
Connection Style: Board-to-Board or Cable
Contact Length (Mating): 0.320” (8.13mm)
Contact Length (Post): 0.100” (2.54mm)
