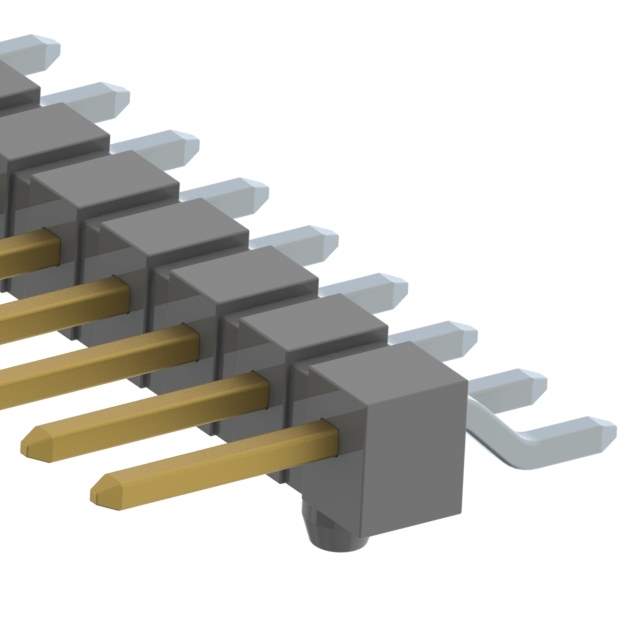

TSM-148-01-S-SH-A

Name: TSM-148-01-S-SH-A
Brand: Samtec Inc.
SKU: 1205580
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TSM-148-01-S-SH-A
Manufacturer	Samtec Inc.
Catalog	Circular Connectors - Housings
Description	CONN HEADER SMD R/A 48POS 2.54MM / Connector Header Surface Mount, Right Angle 48 position 0.100" (2.54mm)
Datasheet	TSM-148-01-S-SH-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TSM
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	48
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Insulation Height	0.120" (3.05mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Guide
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	TSM-148
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	4
Win Source Part Number	1205580-TSM-148-01-S-SH-A
Ultra Librarian 3D Model	Ultra Librarian TSM-148-01-S-SH-A CAD Model

Alternative Products

Description

The TSM-148-01-S-SH-A is a male pin header connector manufactured by Samtec Inc.

Category: Connectors, Interconnects
Sub-Category: Rectangular Connectors - Headers, Male Pins
Series: TSM
Positions: 48
Pitch: 0.100" (2.54mm)
Features: Board Guide
Fastening Type: Push-Pull
