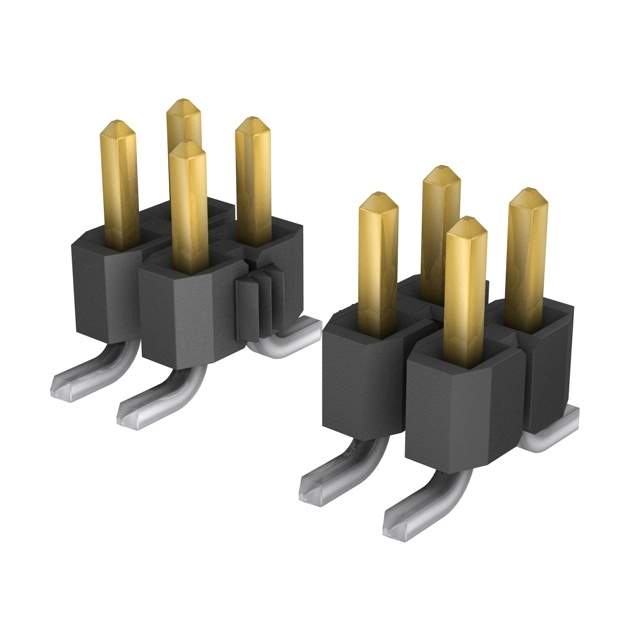

The TSM-111-04-L-DV is a rectangular connector manufactured by Samtec Inc.

• Product Name: TSM-111-04-L-DV
• Manufacturer: Samtec Inc.
• Series: TSM
• Number of Positions: 22
• Connector Type: Header
• Contact Type: Male Pin
• Number of Positions Loaded: All
• Number of Rows: 2
• Termination: Solder
• Fastening Type: Push-Pull
• Package: Tube
• Contact Material: Phosphor Bronze
• Applications: Board to Board or Cable
• Pitch: 0.100" (2.54mm)
• Contact Finish for Mating: Gold
• Contact Finish Thickness for Mating: 10.0µin (0.25µm)
• Contact Finish for Post: Tin
• Insulation Color: Black
• Row Spacing for Mating: 0.100" (2.54mm)
• Insulation Height: 0.100" (2.54mm)
• Contact Shape: Square
• Temperature Range for Operating: -55°C ~ 125°C
