Same model may have multiple batches, images only for reference.

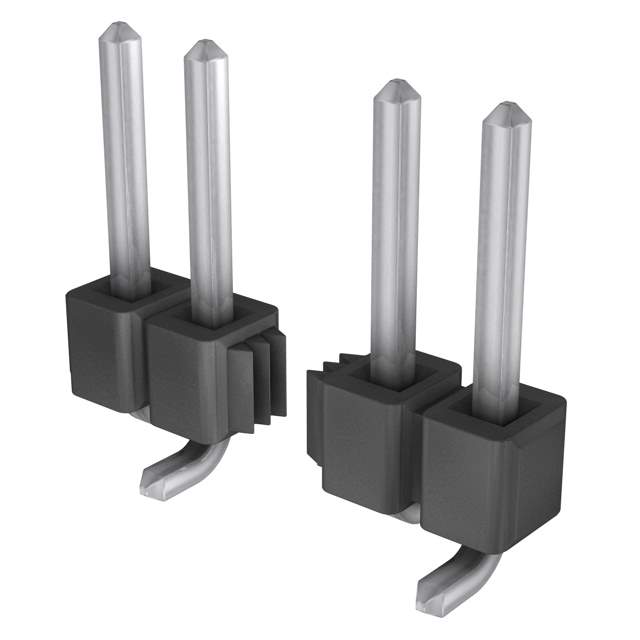

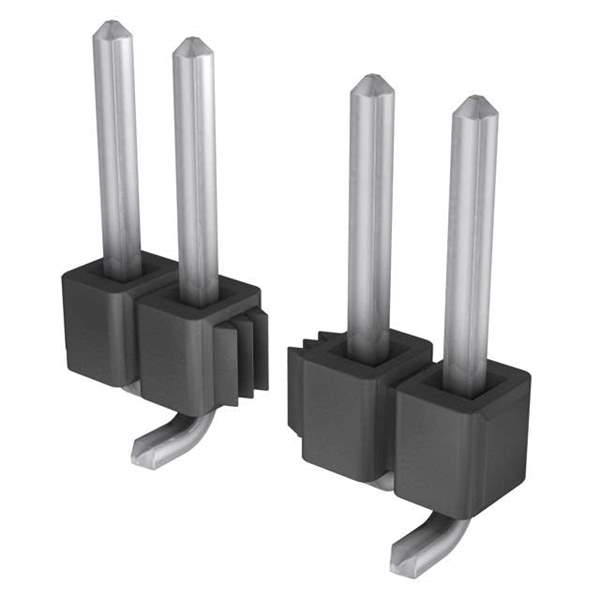

TSM-111-01-T-SV Real Image
Same model may have multiple batches, images only for reference.

TSM-111-01-T-SV

Part No TSM-111-01-T-SV
Manufacturer Samtec Inc.
Catalog Circular Connectors - Housings
Description CONN HEADER SMD 11POS 2.54MM / Connector Header Surface Mount 11 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series TSM
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 11
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number TSM-111
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1
Win Source Part Number 1207228-TSM-111-01-T-SV
Ultra Librarian 3D Model Ultra Librarian TSM-111-01-T-SV CAD Model

Description

The Samtec Inc. 1207228-TSM-111-01-T-SV is a rectangular connector header with male pins that has a series of TSM and 11 number of positions.

  • Mounting Type: Through-hole
  • Insulation Material: Liquid crystal polymer (LCP)
  • Connector Type: Male pin
  • Contact Type: Solder
  • Contact Material: Phosphor bronze
  • Contact Finish: Tin
  • Temperature Range: -55°C to 105°C
