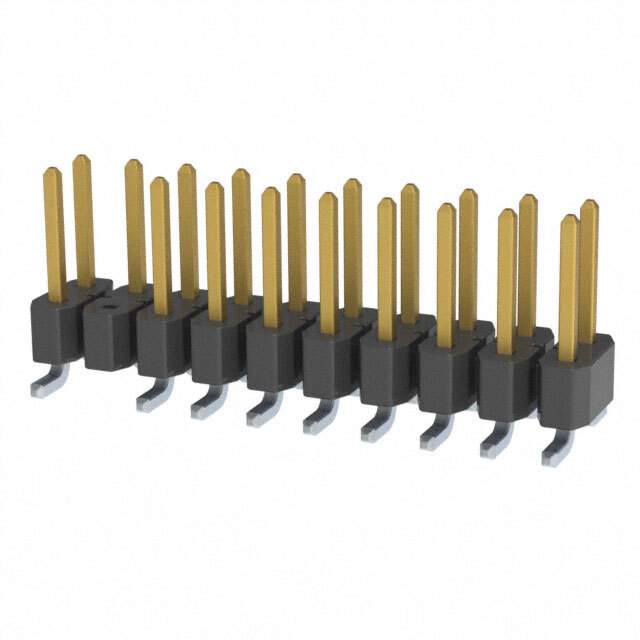

The TSM-110-01-S-DV-017 is a male pin header connector from Samtec Inc.

• Product Name: TSM-110-01-S-DV-017
• Manufacturer: Samtec Inc.
• Category: Rectangular Connectors - Headers, Male Pins
• Pitch: 0.100-inch (2.54mm)
• Connector Style: Board-to-Board or Cable
• Positions: 20
• Fastening Type: Push-Pull
• Termination: Solder
• Positions Loaded: 19
• Number of Rows: Two
• Insulation Material: Liquid Crystal Polymer (LCP)
• Insulation Color: Black
• Contact Finish-Mating: Gold
• Contact Finish Thickness-Mating: 30.0µin (0.76µm)
• Contact Finish-Post: Tin
• Contact Length-Mating: 0.230 inches (5.84mm)
• Row Spacing-Mating: 0.100 inches (2.54mm)
• Current Rating: Amps
• Operating Temperature: -55°C to 125°C
