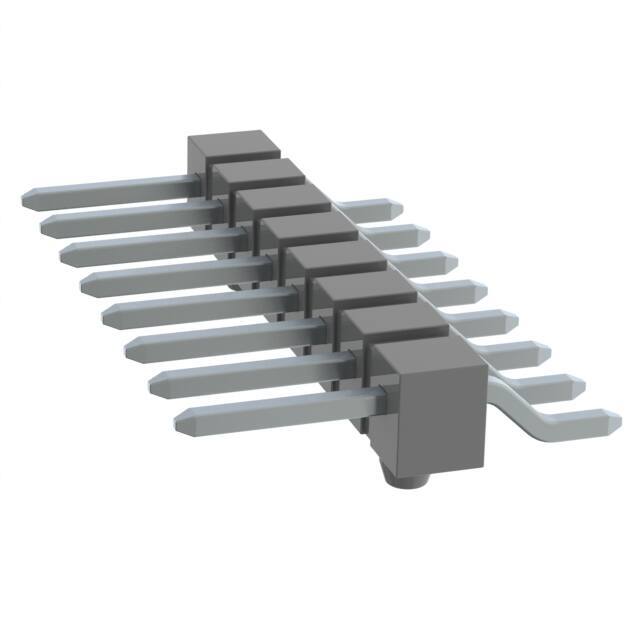

Same model may have multiple batches, images only for reference.

TSM-108-01-T-SH-A-P

Name: TSM-108-01-T-SH-A-P
Brand: Samtec Inc.
SKU: 901337
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TSM-108-01-T-SH-A-P
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 8POS 2.54MM / Connector Header Surface Mount, Right Angle 8 position 0.100" (2.54mm)
Datasheet	TSM-108-01-T-SH-A-P Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TSM
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	8
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Insulation Height	0.120" (3.05mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Guide, Pick and Place
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	TSM-108
Standard Package	28 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	901337-TSM-108-01-T-SH-A-P
Ultra Librarian 3D Model	Ultra Librarian TSM-108-01-T-SH-A-P CAD Model

Alternative Products

Description

The TSM series from Samtec Inc. offers versatile rectangular connectors for various applications. The 901337-TSM-108-01-T-SH-A-P is a male pin header connector with 8 positions and 1 row.

Series: TSM
Positions: 8
Rows: 1
Fastening: push-pull
Termination: solder
Mounting: surface mount, right-angle
Pitch: 0.100" (2.54mm)
Contact Material: phosphor bronze
Temperature Range: -55°C to 105°C
Status: active
Compliance: California Prop 65
