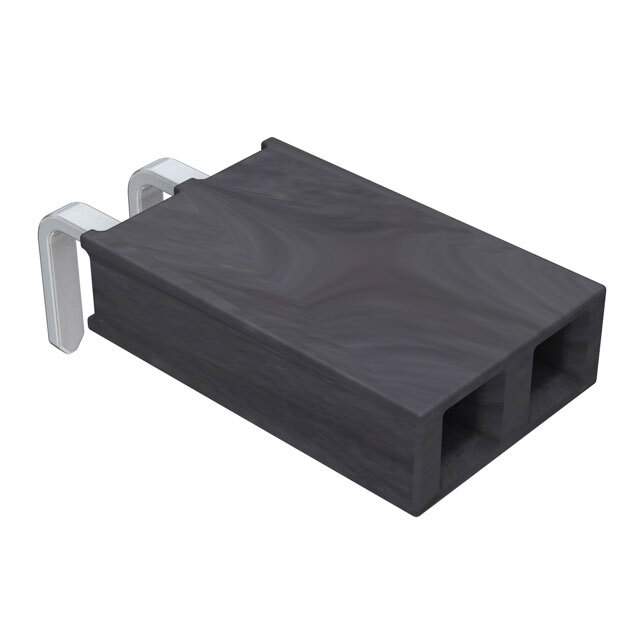

Same model may have multiple batches, images only for reference.

SSW-102-02-S-S-RA

Name: SSW-102-02-S-S-RA
Brand: Samtec Inc.
SKU: 1288398
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SSW-102-02-S-S-RA
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSW
Package	Bulk
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	2
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.095" (2.41mm)
Contact Length - Post	0.100" (2.54mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	4.7A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSW-102
Other Names	Q6492357
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1288398-SSW-102-02-S-S-RA
Ultra Librarian 3D Model	Ultra Librarian SSW-102-02-S-S-RA CAD Model

Alternative Products

Description

The SSW female receptacle connector has a part number of 1288398-SSW-102-02-S-S-RA and has two positions.

Part Number: 1288398-SSW-102-02-S-S-RA
Positions: 2
Connector Type: Board to Board or Cable
Pitch: 0.100" (2.54mm)
Contact Finish: Gold with a thickness of 30.0µin (0.76µm)
Contact Type: Forked
Package: Bulk
Mounting: Through Hole, Right Angle
Manufacturer: Samtec Inc.
Temperature Range: -55°C ~ 125°C
