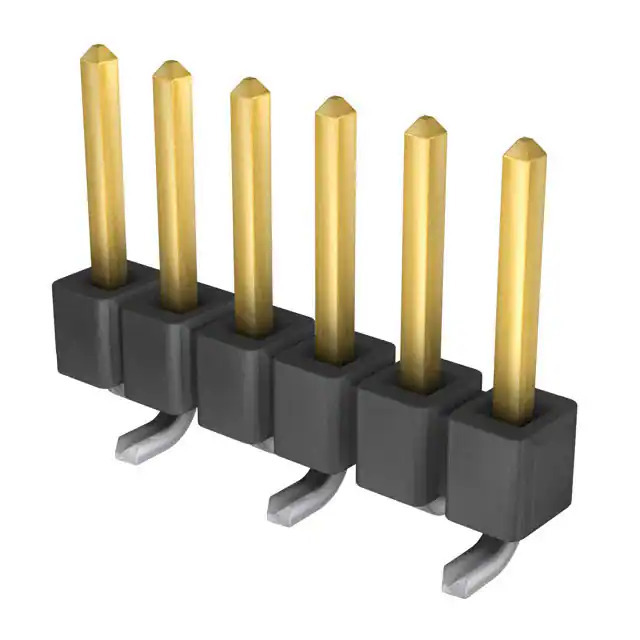

TSM-106-01-F-SV-P-TR Samtec Inc.
Same model may have multiple batches, images only for reference.

TSM-106-01-F-SV-P-TR

Part No TSM-106-01-F-SV-P-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 6POS 2.54MM / Connector Header Surface Mount 6 position 0.100" (2.54mm)
Datasheet
TSM-106-01-F-SV-P-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series TSM
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 6
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post -
Overall Contact Length -
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Pick and Place
Temperature Range - Operating -55°C ~ 125°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) -
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications -
Base Product Number TSM-106
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1356413-TSM-106-01-F-SV-P-TR
Ultra Librarian 3D Model Ultra Librarian TSM-106-01-F-SV-P-TR CAD Model

Description

The Samtec Inc. TSM-106-01-F-SV-P-TR is a surface mount male pin header connector.

  • Series: TSM
  • Type: Header, Male Pin
  • Mounting Type: Surface Mount
  • Connector Type: Board to Board or Cable
  • Pitch: 0.100" (2.54mm)
  • Number of Positions: 6
  • Number of Rows: 1
  • Shrouding: Unshrouded
  • Fastening Type: Push-Pull
  • Contact Finish Mating: Gold, 3.00μin (0.076μm)
  • Contact Finish Post: Tin
  • Contact Material: Phosphor Bronze
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Color: Black
  • Temperature Range: -55°C to 125°C
  • Voltage Rating: -
