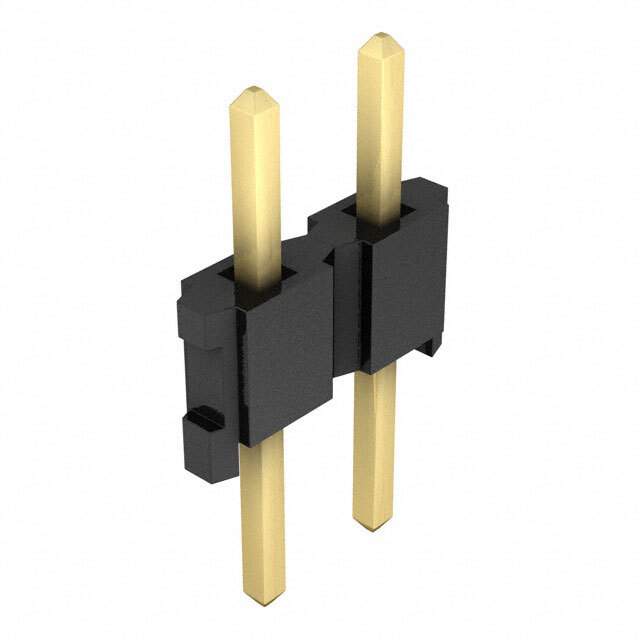

TMS-101-02-G-D

Name: TMS-101-02-G-D
Brand: Samtec Inc.
SKU: 1100437
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	TMS-101-02-G-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 2POS / Connector Header Through Hole 2 position
Datasheet	TMS-101-02-G-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TMS
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Number of Positions	2
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.100" (2.54mm)
Contact Length - Post	0.120" (3.05mm)
Overall Contact Length	0.320" (8.13mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Gold
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	5A per Contact
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	TMS-101
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM15332,TMS-101-02-G-D-ND
Standard Package	1
Win Source Part Number	1100437-TMS-101-02-G-D
Ultra Librarian 3D Model	Ultra Librarian TMS-101-02-G-D CAD Model

Description

The TMS series from Samtec Inc. offers a 2-position header connector with male pin contact type.

Fastening Type: push-pull
Mounting Type: through hole
Insulation Material: black liquid crystal polymer (LCP)
Flammability Rating: UL94 V-0
Contact Material: phosphor bronze
Contact Finish (Mating): gold, 10.0μin thickness
Contact Finish (Post): gold, 3.00μin thickness
Contact Shape: square
Contact Length (Post): 0.120"
Contact Length (Mating): 0.100"
Insulation Height: 0.100"
Overall Contact Length: 0.320"
Shrouded: unshrouded
Row Spacing: 0.100"
Application: board to board style
Operating Temperature: -55°C to 125°C
