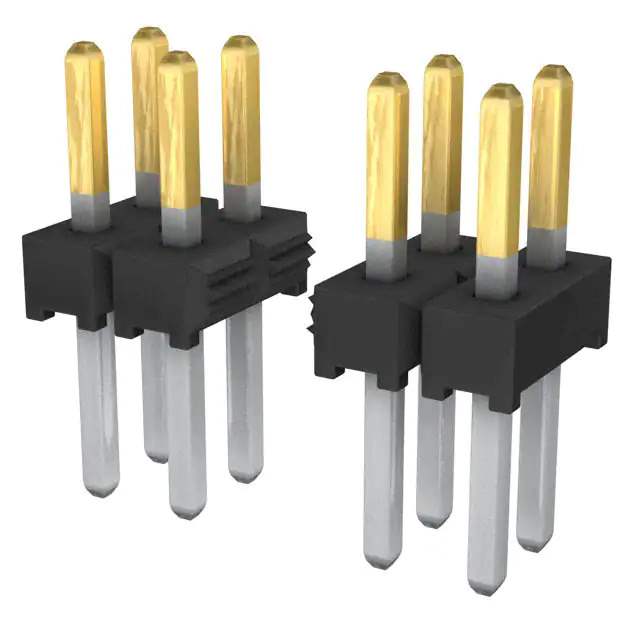

TMM-150-04-S-D

Name: TMM-150-04-S-D
Brand: Samtec Inc.
SKU: 814397
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TMM-150-04-S-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	2MM TERMINAL STRIP
Datasheet	TMM-150-04-S-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TMM
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	100
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.075" (1.90mm)
Contact Length - Post	0.090" (2.29mm)
Overall Contact Length	0.224" (5.69mm)
Insulation Height	0.059" (1.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Insulation Color	Black
Current Rating (Amps)	3.2A per Contact
Base Product Number	TMM-150
Standard Package	1 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	814397-TMM-150-04-S-D
Ultra Librarian 3D Model	Ultra Librarian TMM-150-04-S-D CAD Model

Description

The TMM-150-04-S-D is a header connector from Samtec Inc.

Positions: 100
Connection: Board-to-board or cable
Pitch: 0.079 inches (2.00mm)
Contact Finish (Mating): Gold (30.0μin (0.76μm))
Contact Finish (Post): Tin
Shrouded: Unshrouded
Mounting Type: Through Hole
Contact Length (Mating): 0.075 inches (1.90mm)
Contact Length (Overall): 0.224 inches (5.69mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Temperature Range: -55°C to 125°C
Current Rating: 3.2A per contact
Packaging: Bulk
