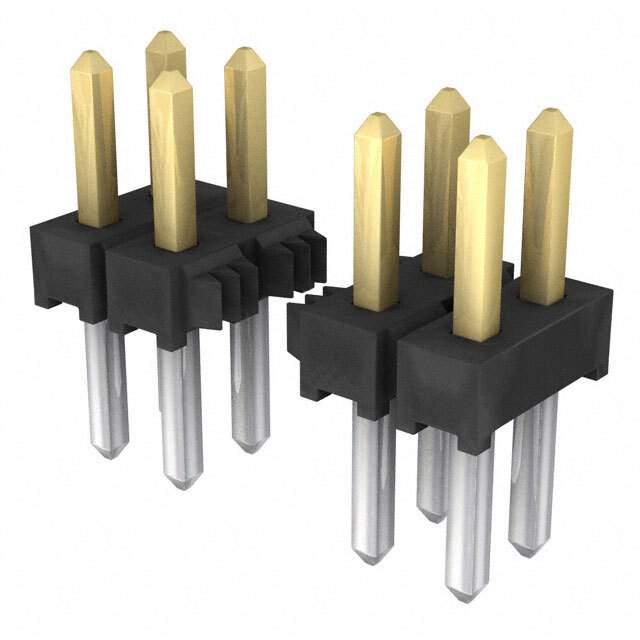

Same model may have multiple batches, images only for reference.

TMM-139-01-S-D

Name: TMM-139-01-S-D
Brand: Samtec Inc.
SKU: 1079199
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TMM-139-01-S-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 78POS 2MM / Connector Header Through Hole 78 position 0.079" (2.00mm)
Datasheet	TMM-139-01-S-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TMM
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	78
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.126" (3.20mm)
Contact Length - Post	0.138" (3.50mm)
Overall Contact Length	0.323" (8.20mm)
Insulation Height	0.059" (1.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Insulation Color	Black
Current Rating (Amps)	3.2A per Contact
Base Product Number	TMM-139
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM1175-39
Standard Package	1
Win Source Part Number	1079199-TMM-139-01-S-D
Ultra Librarian 3D Model	Ultra Librarian TMM-139-01-S-D CAD Model

Description

The Samtec Inc. TMM-139-01-S-D is a rectangular connector that is part of the TMM series.

Positions: 78
Current Rating: 3.2A per contact
