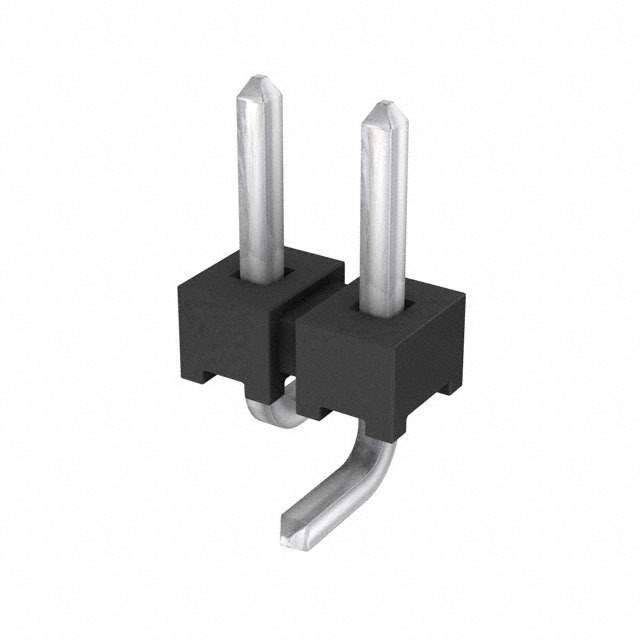

Same model may have multiple batches, images only for reference.

TMM-102-01-T-S-SM

Name: TMM-102-01-T-S-SM
Brand: Samtec Inc.
SKU: 813179
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TMM-102-01-T-S-SM
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 2POS 2MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Samtec Inc.
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Style	SMD
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.126" (3.20mm)
Insulation Height	0.059" (1.50mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.2A per Contact
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	813182-TMM-102-01-T-S-SM
Ultra Librarian 3D Model	Ultra Librarian TMM-102-01-T-S-SM CAD Model

Alternative Products

Description

The Samtec Inc. 813182-TMM-102-01-T-S-SM is a board-to-board or cable-style connector with male pins from Samtec Inc.

Positions: 2
Rows: 1
Shrouding: Unshrouded
Contact Material: Phosphor Bronze
Contact Finish: Tin
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Pitch: 0.079 inches (2.00mm)
Mating Contact Length: 0.126 inches (3.20mm)
Temperature Range: -55°C to 105°C
Current Rating: 3.2A per contact
