Same model may have multiple batches, images only for reference.

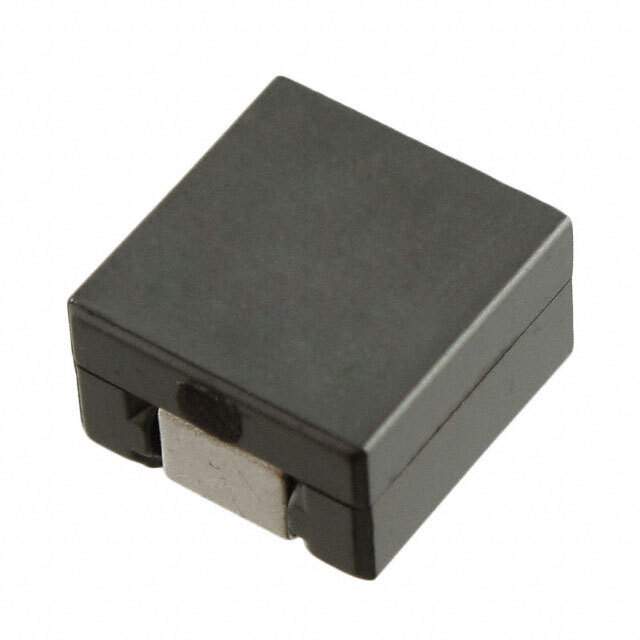

FP1308-R21-R Real Image
Same model may have multiple batches, images only for reference.

FP1308-R21-R

Part No FP1308-R21-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 210NH 68A 0.24 MOHM / Inductor Power Wirewound 0.21uH 10% 100KHz Ferrite 68A 0.00024Ohm DCR 5050 T/R
Datasheet
FP1308-R21-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton
Series FLAT-PAC, FP1308
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 210nH
Tolerance ±10%
Current Rating 68A
Current - Saturation 72A
Shielding Unshielded
DC Resistance (DCR) 0.24 mOhm Max
Operating Temperature Range -40°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.539" L x 0.510" W (13.70mm x 12.95mm)
Height - Seated (Maximum) 0.315" (8.00mm)
Win Source Part Number 774696-FP1308-R21-R
Popularity Medium
Supply and Demand Status Limited
Family Name FP1308
Introduction Date October 05, 2006
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian FP1308-R21-R CAD Model

Description

The Eaton 774696-FP1308-R21-R is a wirewound inductor.

  • Series: FLAT-PAC, FP1308
  • Mounting: SMD
  • Current Rating: 68A
  • Inductance: 210nH
  • Tolerance: ±10%
  • DC Resistance (DCR): 0.24 mOhm
  • Maximum Height: 0.315 inches
  • Material: Ferrite
  • Current Saturation: 72A
  • Supply and Demand Status: Limited
