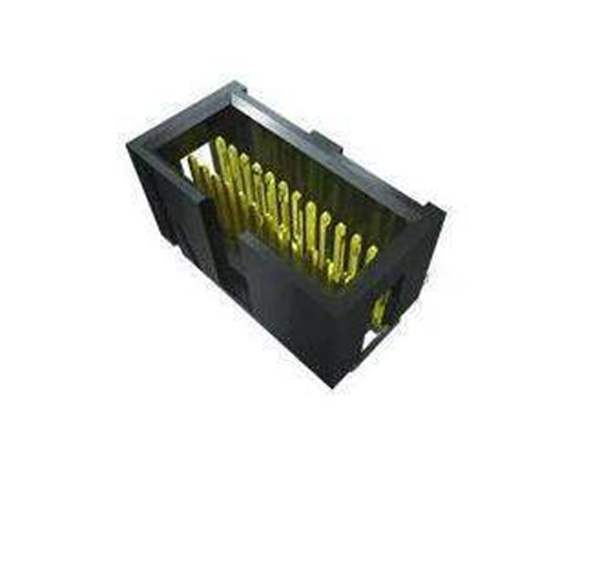

TML-117-02-G-D Samtec Inc.
Same model may have multiple batches, images only for reference.

TML-117-02-G-D

Part No TML-117-02-G-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description .050" X .100" SHROUDED TERMINAL
Datasheet
TML-117-02-G-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Samtec Inc.
Category Connectors, Interconnects > Rectangular Connectors > Headers, Male Pins
Packaging Bulk
Part Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 34
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Ultra Librarian 3D Model Ultra Librarian TML-117-02-G-D CAD Model

Description

Connector Header Through Hole 34 position 0.050" (1.27mm)
