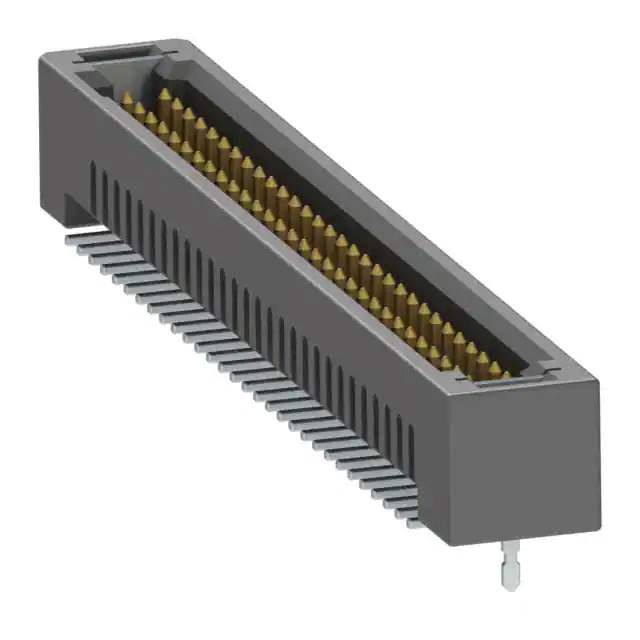

TFM-130-02-S-D-WT-P-TR Real Image
Same model may have multiple batches, images only for reference.

TFM-130-02-S-D-WT-P-TR

Part No TFM-130-02-S-D-WT-P-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 60POS 1.27MM / Connector Header Surface Mount 60 position 0.050" (1.27mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series Tiger Eye™ TFM
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 60
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.131" (3.33mm)
Insulation Height 0.220" (5.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Pick and Place, Solder Retention
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2.9A per Contact
Voltage Rating 275VAC
Base Product Number TFM-130
Standard Package 275 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 936433-TFM-130-02-S-D-WT-P-TR
Ultra Librarian 3D Model Ultra Librarian TFM-130-02-S-D-WT-P-TR CAD Model

Description

The Tiger Eye™ TFM series header, part number 936433-TFM-130-02-S-D-WT-P-TR, is a high-quality connector designed for various applications in the electronics industry. With a total of 60 positions and 2 rows, this header provides a reliable connection for your electronic components.

  • Fastening Type: push-pull
  • Termination: solder
  • Contact Material: phosphor bronze
  • Voltage Rating: 275VAC
  • Current Rating: 2.9A per contact
  • Flammability Rated: UL94 V-0
  • Insulation Material: liquid crystal polymer (LCP)
  • Connection: board-to-board or cable
  • Mounting: surface mountable
  • Features: pick and place and solder retention
