TFM-125-12-S-D-A-K-TR
Same model may have multiple batches, images only for reference.

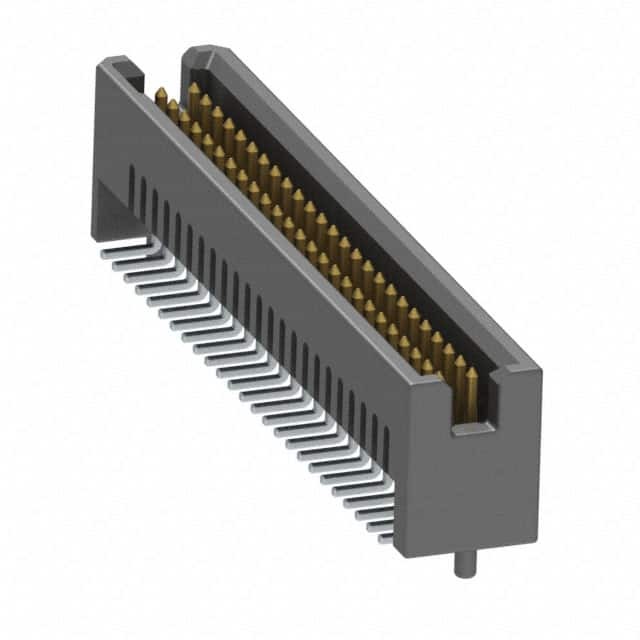

TFM-125-12-S-D-A-K-TR

Part No TFM-125-12-S-D-A-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 50POS 1.27MM / Connector Header Surface Mount 50 position 0.050" (1.27mm)
Datasheet
TFM-125-12-S-D-A-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series Tiger Eye™ TFM
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 50
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.139" (3.53mm)
Insulation Height 0.290" (7.37mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Board Guide, Pick and Place
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2.9A per Contact
Voltage Rating 275VAC
Base Product Number TFM-125
Standard Package 300 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 936430-TFM-125-12-S-D-A-K-TR
Ultra Librarian 3D Model Ultra Librarian TFM-125-12-S-D-A-K-TR CAD Model

Description

The Tiger Eye™ TFM series is a versatile range of rectangular connectors designed for various applications. The TFM-125-12-S-D-A-K-TR is a header connector with 50 positions and a male pin contact type.

  • Features: board guide and pick and place capabilities
  • Mounting: surface mount
  • Fastening Type: push-pull
  • Voltage Rating: 275VAC
  • Current Rating: 2.9A per contact
  • Contact Material: phosphor bronze with gold plating
  • Flammability Rated: UL94 V-0
  • Insulation Material: liquid crystal polymer (LCP)
  • Pitch: 0.050" (1.27mm)
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Status: active product
  • Series: Tiger Eye™ TFM by Samtec Inc.
