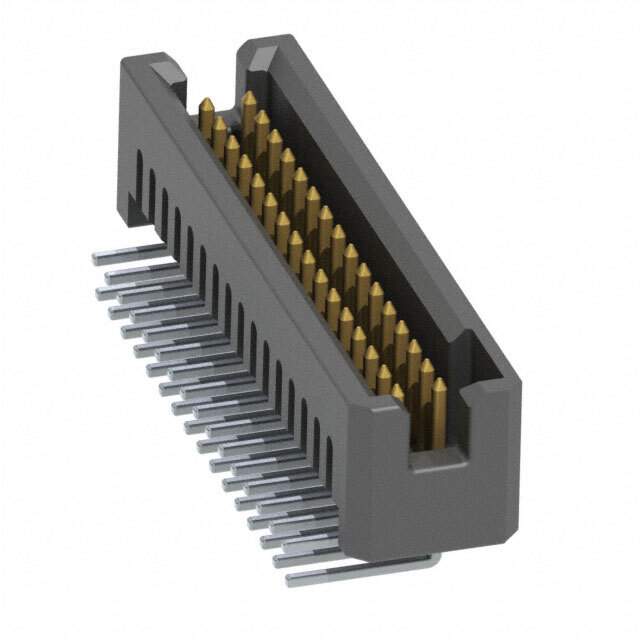

TFM-116-01-S-D-RA

Name: TFM-116-01-S-D-RA
Brand: Samtec Inc.
SKU: 454086
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TFM-116-01-S-D-RA
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER 32POS .05" R/A
Datasheet	TFM-116-01-S-D-RA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Packaging	Tube/Rail
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Number of Positions	32
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting	Through Hole, Right Angle
Termination	Solder
Contact Length - Mating	0.142" (3.61mm)
Contact Length - Post	0.075" (1.91mm)
Insulation Height	0.225" (5.72mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30μin (0.76μm)
Contact Finish - Post	Tin
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C to 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	2.9A per Contact
Voltage Rating	275VAC
Win Source Part Number	1039035-TFM-116-01-S-D-RA
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian TFM-116-01-S-D-RA CAD Model

Alternative Products

Description

The TFM-116-01-S-D-RA is a 32-position header connector with a shrouded 4-wall design from Samtec.

Part: TFM-116-01-S-D-RA
Manufacturer: Samtec
Positions: 32
Type: Header Connector
Design: Shrouded 4-wall
Application: Board-to-Board or Cable
Supply and Demand: Balanced
Popularity: Medium
